ICA012078 (LUBRICANT, GENERAL PURPOSE) Tef-Gel
®
TASK INSTRUCTIONS:
1. Install LH fan shroud. (See Figure 16-7.)
a. Apply LUBRICANT and install one countersunk screw with a #15 Torx driver.
b. Apply LUBRICANT and install three #10-32 button head screws with #20 Torx driver.
c. Torque to 26 in-lb.

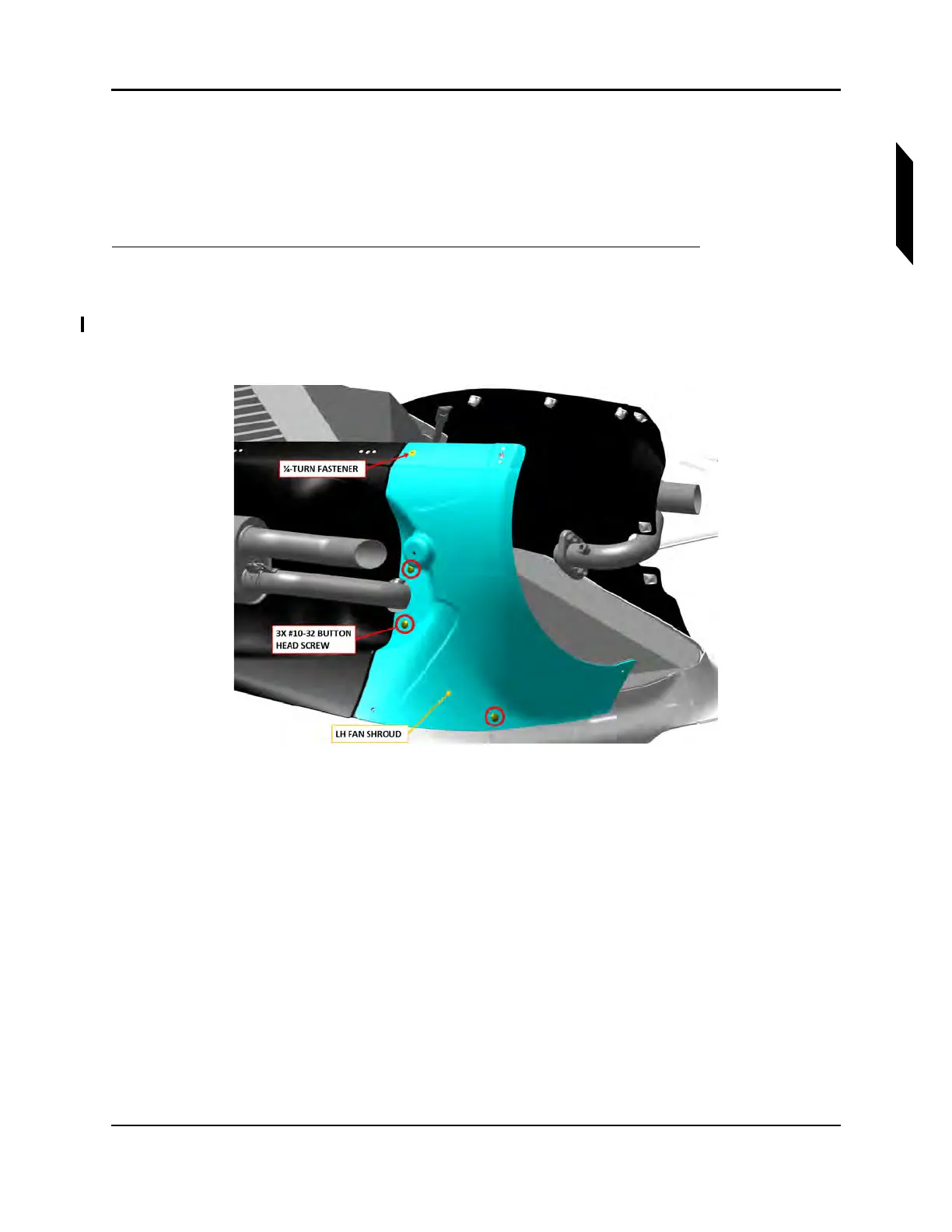

FIGURE 16-7
LH FAN SHROUD INSTALLATION
2. Install RH fan shroud. (See Figure 16-8.)
a. Apply LUBRICANT and install two countersunk screws with a #15 Torx driver.
b. Apply LUBRICANT and install four #10-32 button head screws with #20 driver.
c. Torque to 26 in-lb.
