16-56 PROPULSION / ENGINE
ICON A5 / MAINTENANCE MANUAL CHANGE C2
Special Tools Required
None
Parts Required
None
Aircraft System and Number
13—Propulsion
Consumables
None

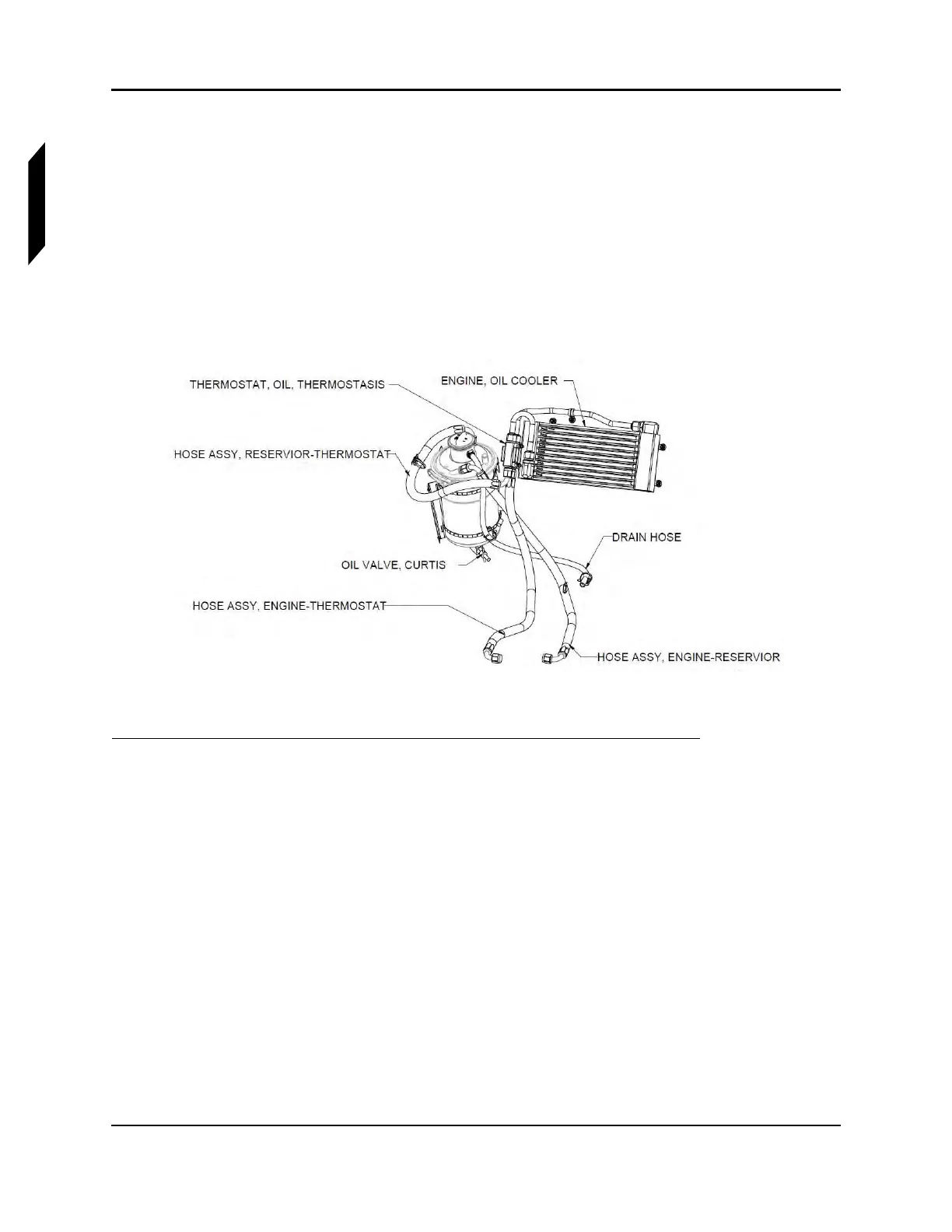

FIGURE 16-34
OIL SYSTEM INSTALLATION WITH HOSES AND HARDWARE SHOWN.
1. Remove engine cowling. (See “Remove Engine Cowlings” on page 16-13.)
2. Visually inspect oil cooler and radiator for leaks and condition of hoses.
