16-64 PROPULSION / ENGINE
ICON A5 / MAINTENANCE MANUAL CHANGE C2

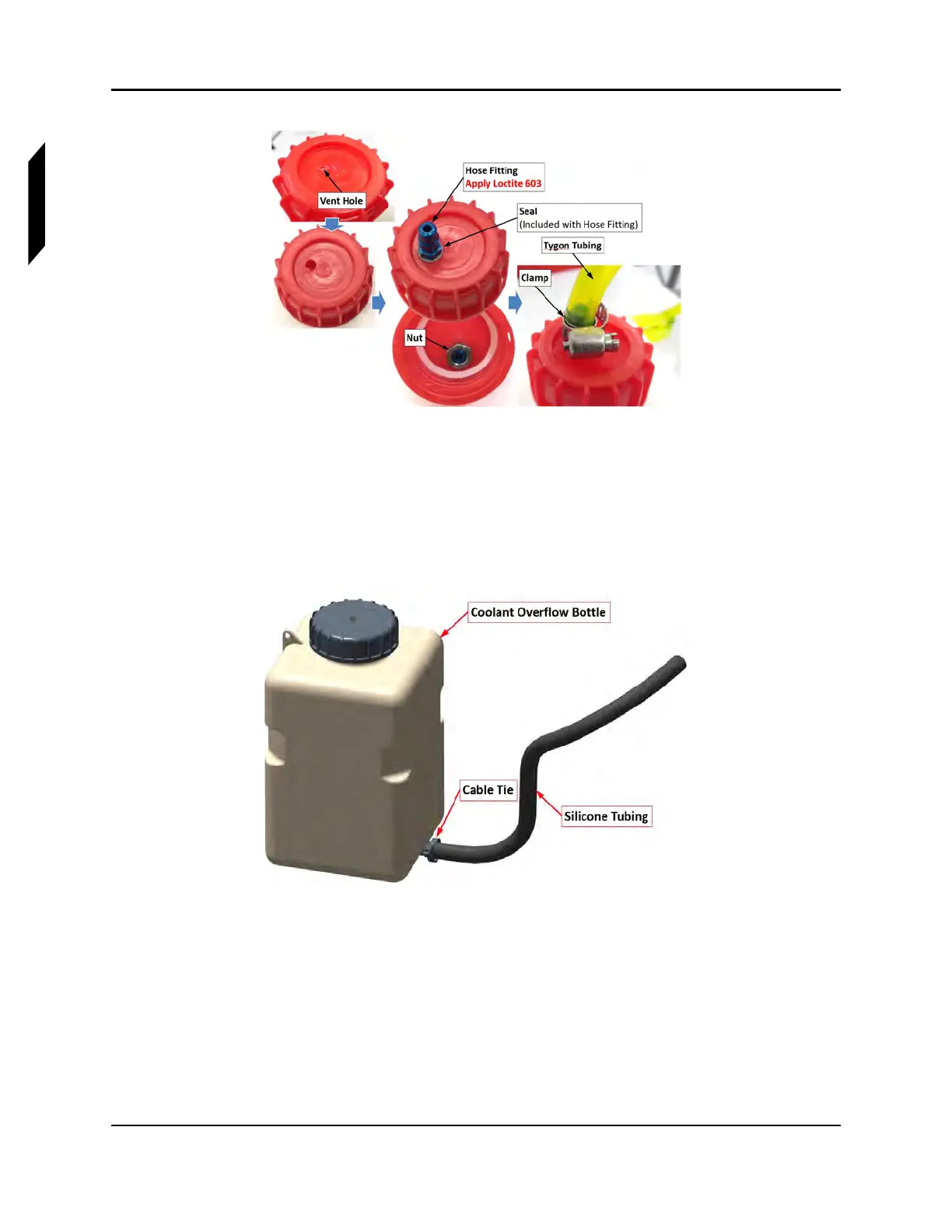

FIGURE 16-38
COOLANT OVERFLOW BOTTLE
3. If installing new hoses, prepare them as follows:
a. Cut a 10-inch length of 51135K21 silicone tubing and attach it to the bottom nipple of the
bottle. Secure with a TY24MX cable tie as shown in Figure 16-39.
b. Cut a 42-inch length of 552K25 Tygon tubing and install tubing on the bottle cap hose
fitting using a 3804 hose clamp.
FIGURE 16-39
COOLANT OVERFLOW BOTTLE
4. Install the coolant overflow bottle bracket on the engine as shown in Figure 16-40. using the
noted hardware. Apply LOCTITE
®
243™ to the screw threads.
