Parts Required
None
Aircraft System and Number
13—Propulsion
Consumables
LOCTITE
®
603
LOCTITE
®
243™
TASK INSTRUCTIONS:
1. If installing a new coolant overflow bottle bracket, prepare it as follows:
a. A CB9120V5 cable tie anchor will be bonded to the bracket in the location shown in Figure
16-37.
b. Lightly abrade the bonding area of the bracket and clean with isopropyl alcohol.
c. Bond the anchor to the bracket with Click Bond CB200 adhesive as shown. Allow to cure
for 2 hours.

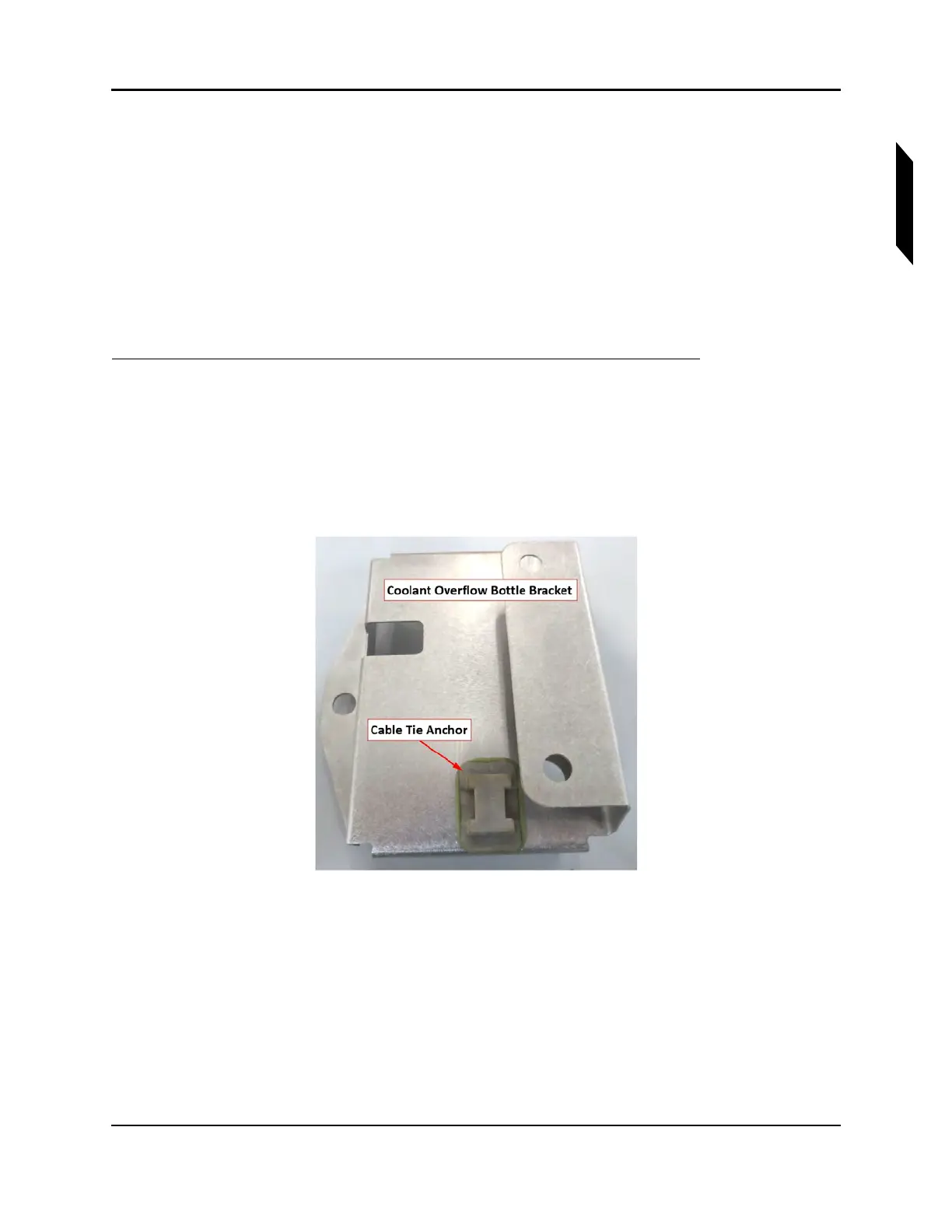

FIGURE 16-37
COOLANT OVERFLOW BOTTLE
2. If installing a new 922327 coolant overflow bottle, prepare it as follows:
a. Unscrew the cap from the bottle and drill the existing vent hole out to 6mm (.236 in) diam-
eter.
b. Apply LOCTITE
®
603 to the threads of a 5058K34 hose fitting. Insert the hose fitting with
its seal into the vent hole as shown in Figure 16-38.
c. Secure the hose fitting using an AN316C49 nut torqued to 44 in-lb
f
d. Reinstall cap on bottle.
