PROPULSION / PROPELLER 16-97
CHANGE C2 ICON A5 / MAINTENANCE MANUAL

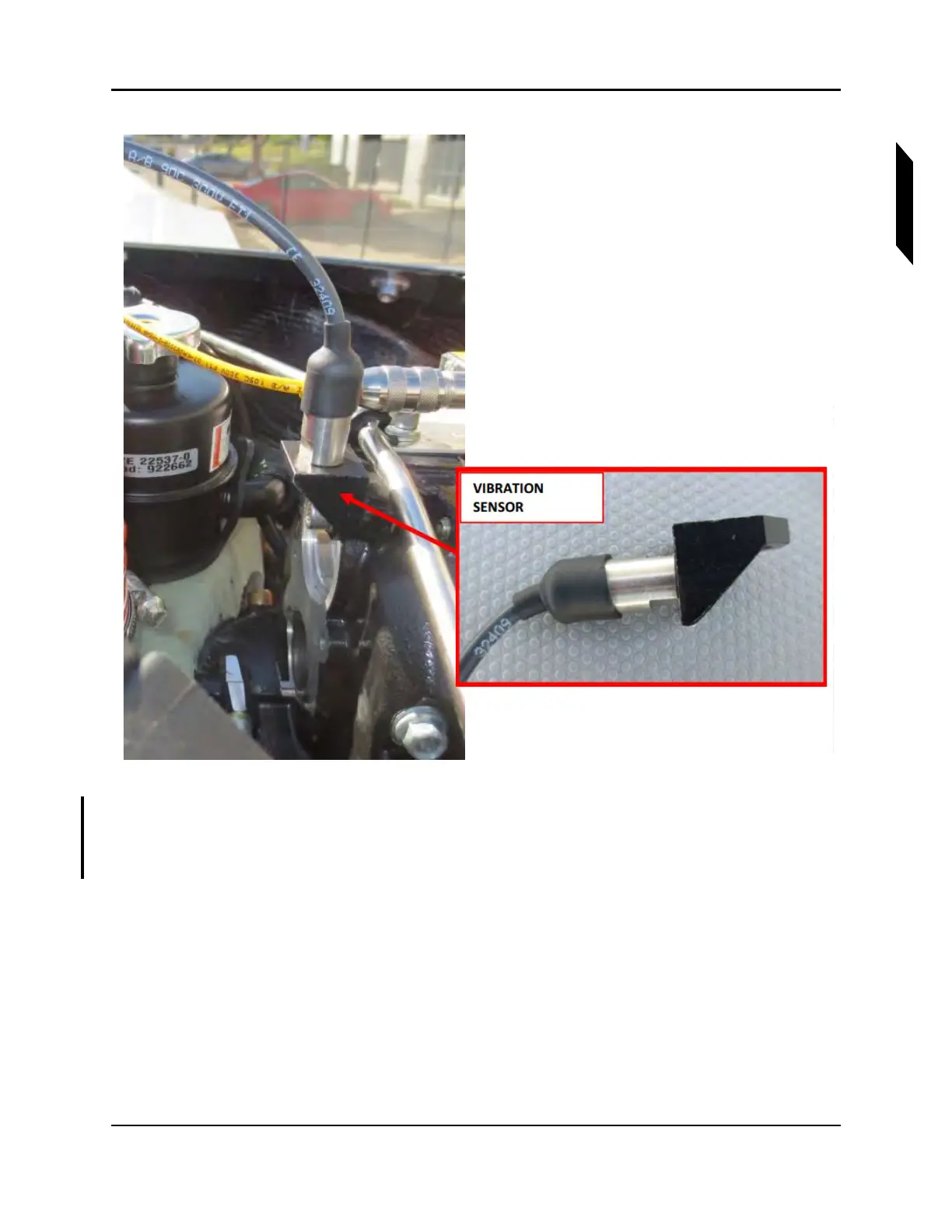

FIGURE 16-59
ACCELEROMETER INSTALLATION EXAMPLE USING AN EXISTING FUEL RAIL SCREW (A
PROBALANCER SPORT ACCELEROMETER SHOWN)
4. Route accelerometer wire through the oil access door in the engine cowl, reinstall the top engine
cowl, and connect antennas. (See Figure 16-60 and “Install Engine Cowlings” on page 16-16.)
