WING / WING LOCK 17-35
CHANGE C2 ICON A5 / MAINTENANCE MANUAL

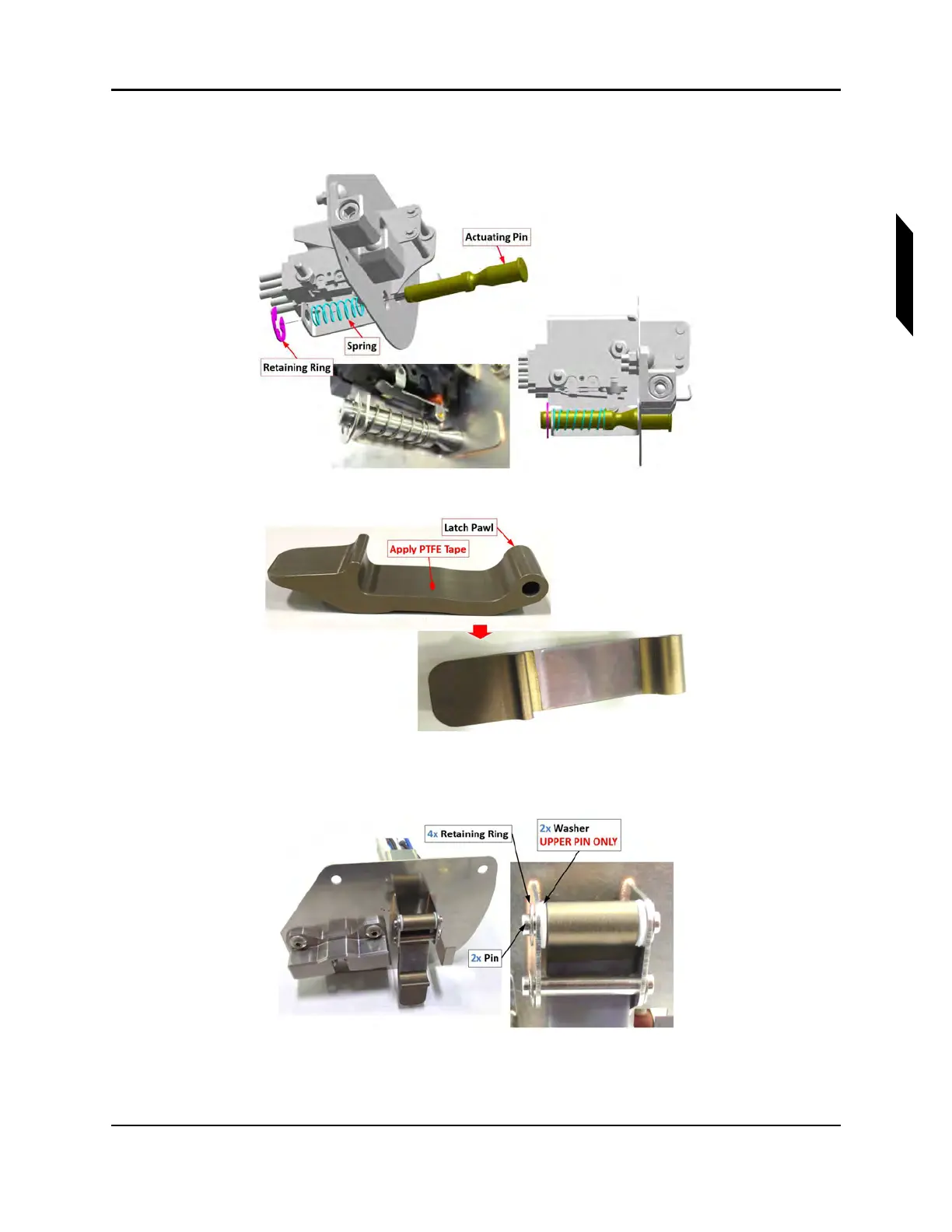

6. Install ICA008397 actuating pin, 9435K520 spring and new 98408A120 retaining clips. Ensure
that new retaining clips are used.
7. Prepare the ICA010840 extended latch pawl by applying 76475A52 PTFE tape.
8. Install the extended latch pawl into the lock mechanism with two ICA008395 pins, four new
98408A116 retaining rings, and two 95630A234 washers. The pins should slide in easily by hand.
Ensure that new retaining clips are used.
