19-16 ICON PARACHUTE SYSTEM (IPS) / HARNESS
ICON A5 / MAINTENANCE MANUAL CHANGE C1
Task Specific Training Required
No
Special Tools Required
None
Parts Required
008007-01 (Assy., Packed Parachute, A5)
014105-01 (Collar Assy., Pickup, Short Support)
005061-01 (Link, Quick, 1/2”, French SS)
001432-01 (Retaining Strap, A5)
007596-22 (Bridle, Kevlar, “A-C” End, Compact Tang)
007596-23 (Bridle, Kevlar, “A-C” End, Compact Tang)
ICA009063 (PIN, TIE OFF, CAP)
VH-62-S16 (Retaining Ring, Internal, Light Duty, 316ss, .656x.0118)
Aircraft System and Number
16—ICON Parachute System (IPS)
Consumables
LOCTITE
®
242
1. Attach the “A” end of the rear harness to the mounting bracket located inside the parachute bay
on the STARBOARD side of the aircraft.

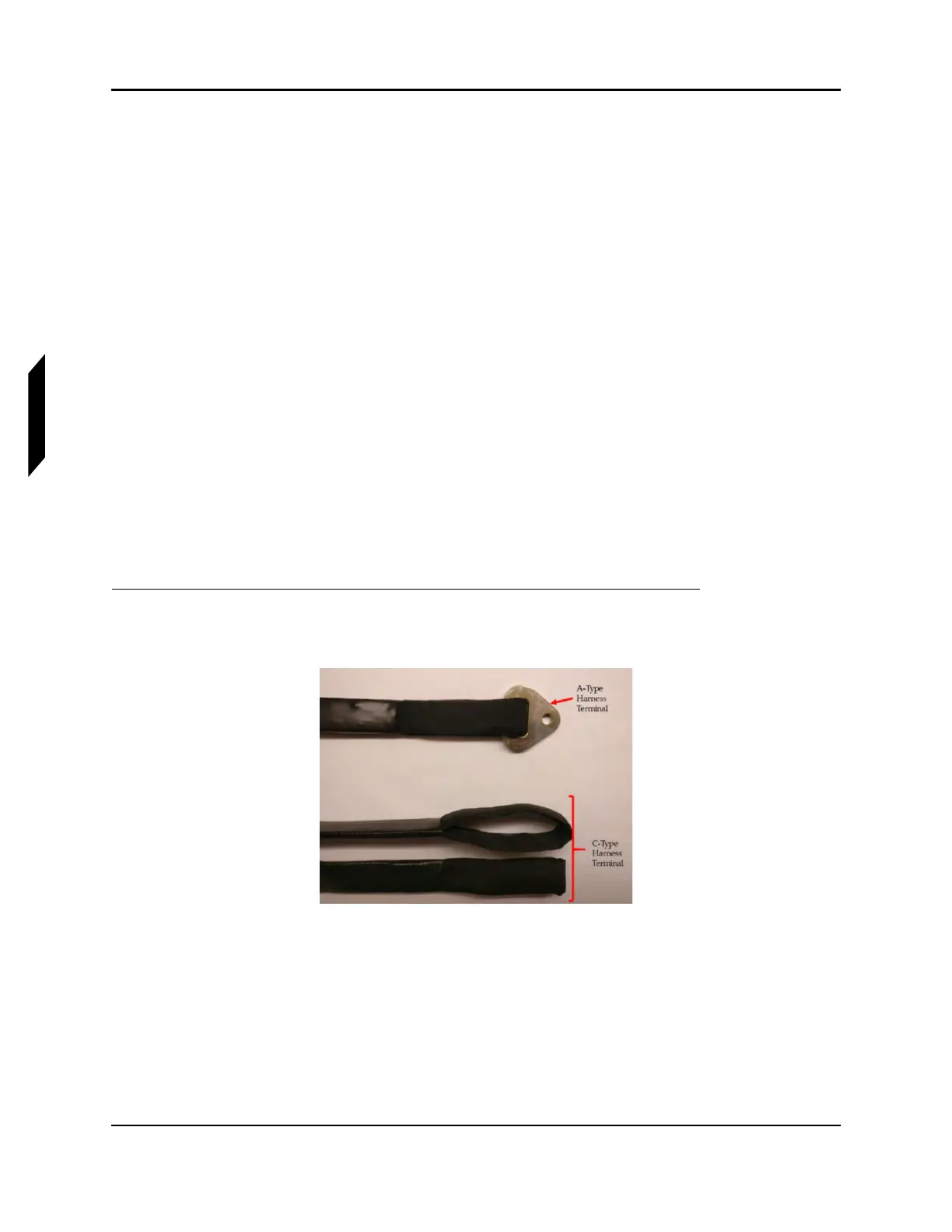

FIGURE 19-6
HARNESS ASSEMBLY ATTACHMENT POINTS, COMPONENT VIEW
