19-18 ICON PARACHUTE SYSTEM (IPS) / HARNESS
ICON A5 / MAINTENANCE MANUAL CHANGE C1

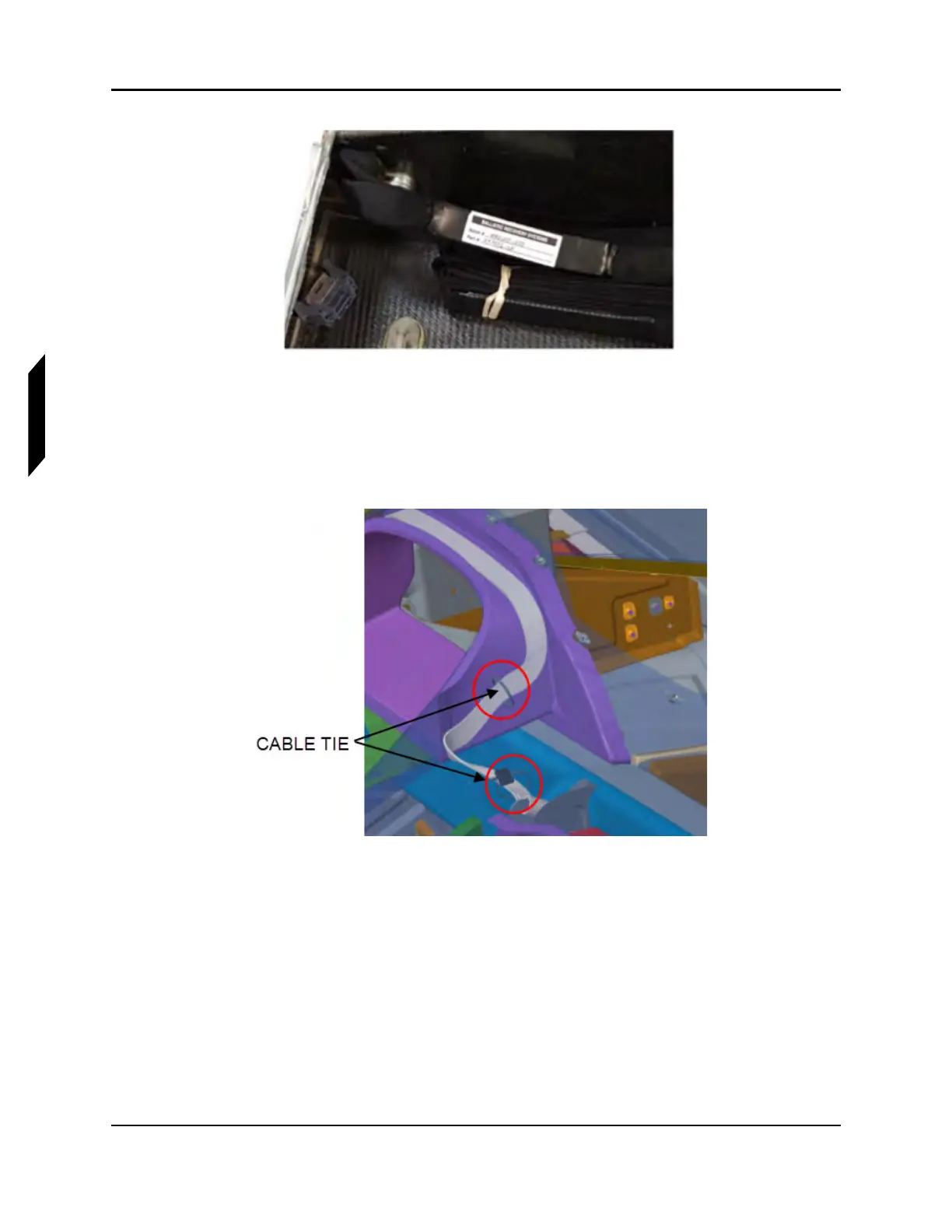

FIGURE 19-10
HARNESS ROUTING, AFT, STARBOARD HARNESS TO PARACHUTE BAY
5. Route FORWARD PORT and STARBOARD harnesses into the parachute bay to be “S”-folded
with the STARBOARD rear attachment point harness and routed to the 1/2” quick link then
attached to the riser later in the parachute bay.
6. FORWARD PORT harness mount locations, total 2.
FIGURE 19-11
FORWARD PORT HARNESS MOUNT LOCATIONS
7. FORWARD STARBOARD harness mount locations, total 3.
