19-20 ICON PARACHUTE SYSTEM (IPS) / HARNESS
ICON A5 / MAINTENANCE MANUAL CHANGE C1

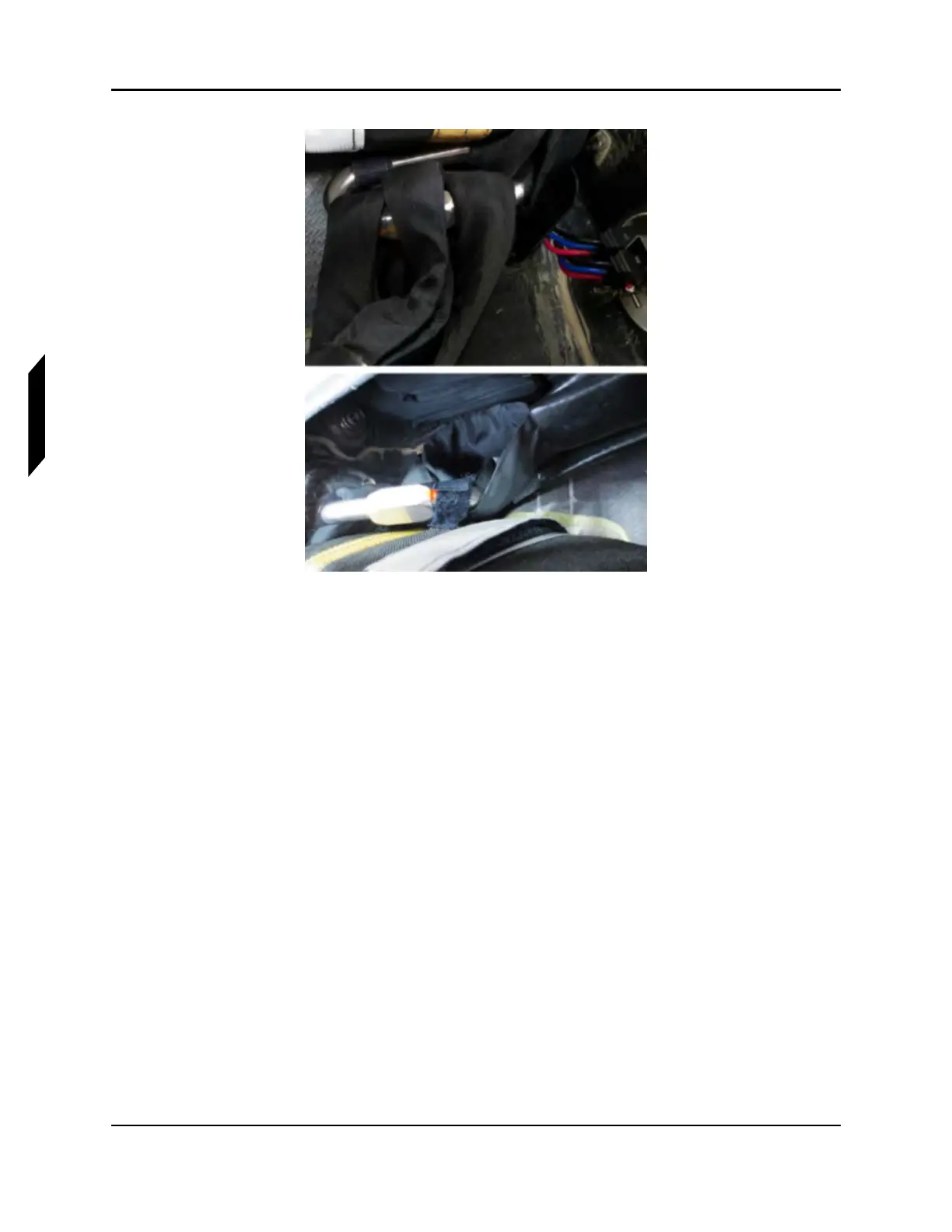

FIGURE 19-14
HARNESS ENDS INSERTED INTO 1/2” QUICK LINK
10. Lay the S-folded harnesses together as a package fixed with (2) two, 10.75” cable ties, into the
parachute bay.
11. Insert the harness package into the space between parachute and parachute cover. Three
harnesses will be “S” folded into space AFT of the parachute bag in the ICON parachute bay and
placed in the bay as a unite tied together with (2) two, 10.75” cable ties.
