ICON PARACHUTE SYSTEM (IPS) / HARNESS 19-21
CHANGE C1 ICON A5 / MAINTENANCE MANUAL

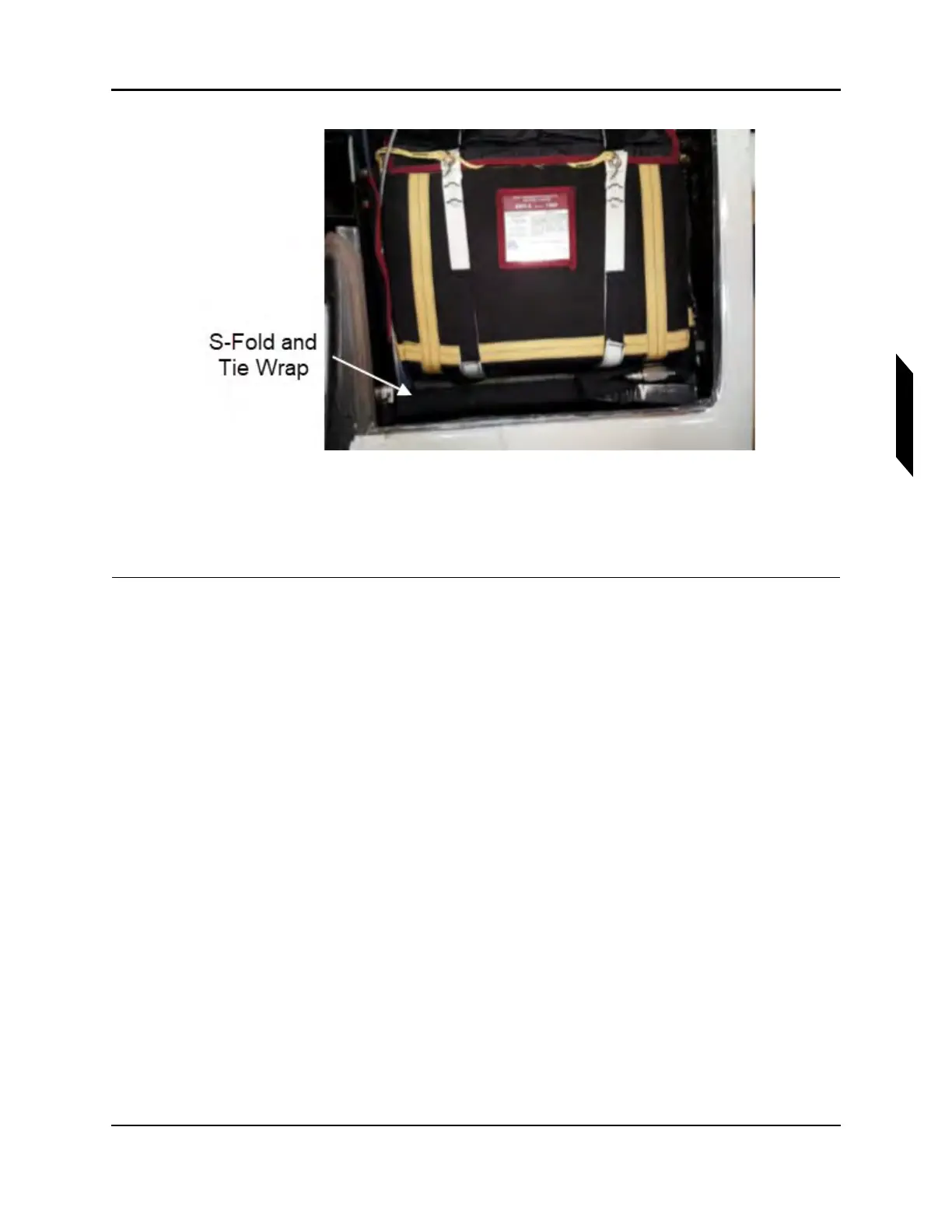

FIGURE 19-15
HARNESS INSTALLATION: “S”-FOLD AND TIE WRAP
NOTE: When installing the parachute bag into the compartment, use care
to be sure that bridles are neatly “S” folded and will be free from
restrictions during recovery system deployment.
VERIFICATION METHOD:
The procedure is complete when the harness has been successfully installed and all components are
secure.
RELATED INFORMATION:
"Removal and Installation of Inspection Panels and Fairings" on page 3-34
"Cockpit Panels Removal and Installation" on page 3-36
"Parachute Installation" on page 19-10
