19-22 ICON PARACHUTE SYSTEM (IPS) / EXTRACTION ROCKET
ICON A5 / MAINTENANCE MANUAL CHANGE C1
19.6 Extraction Rocket
19.6.1 Extraction Rocket Description
The extraction rocket system is comprised of the rocket motor, rocket sleeve, rocket motor igniter, and
mounting hardware. Once activated, a high-powered solid fuel rocket deploys the parachute and
harness system.

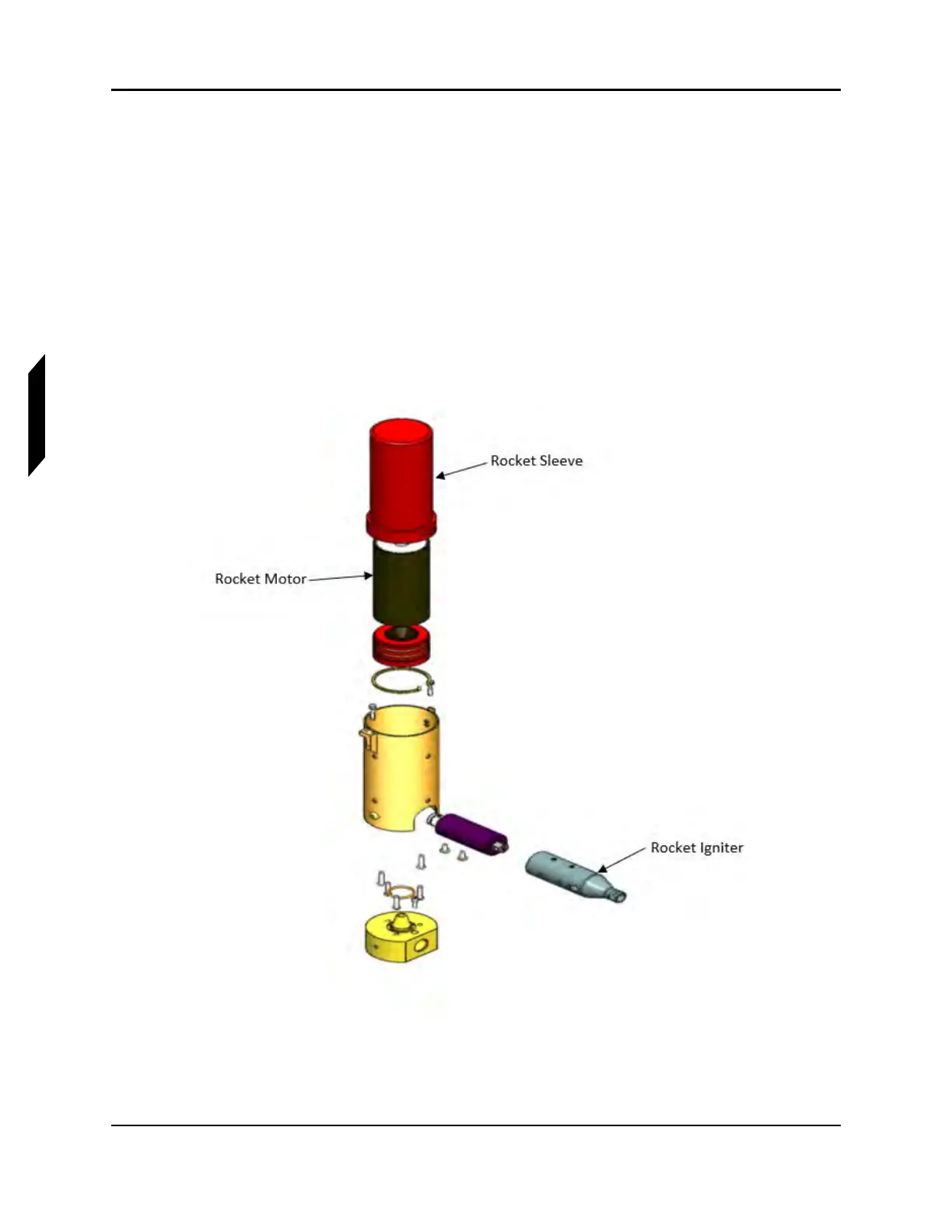

19.6.2 Extraction Rocket Diagram/Schematic
