19-26 ICON PARACHUTE SYSTEM (IPS) / EXTRACTION ROCKET
ICON A5 / MAINTENANCE MANUAL CHANGE C1
rocket mounting bracket should not allow rocket assembly to move in its mount, the two bolts
should be enough to do so.
NOTE: If the thickness of the mounting bracket allows BRS 601 movement
after tightening the two bolts it is acceptable to use spacer to fully
secure the rocket to the bracket.

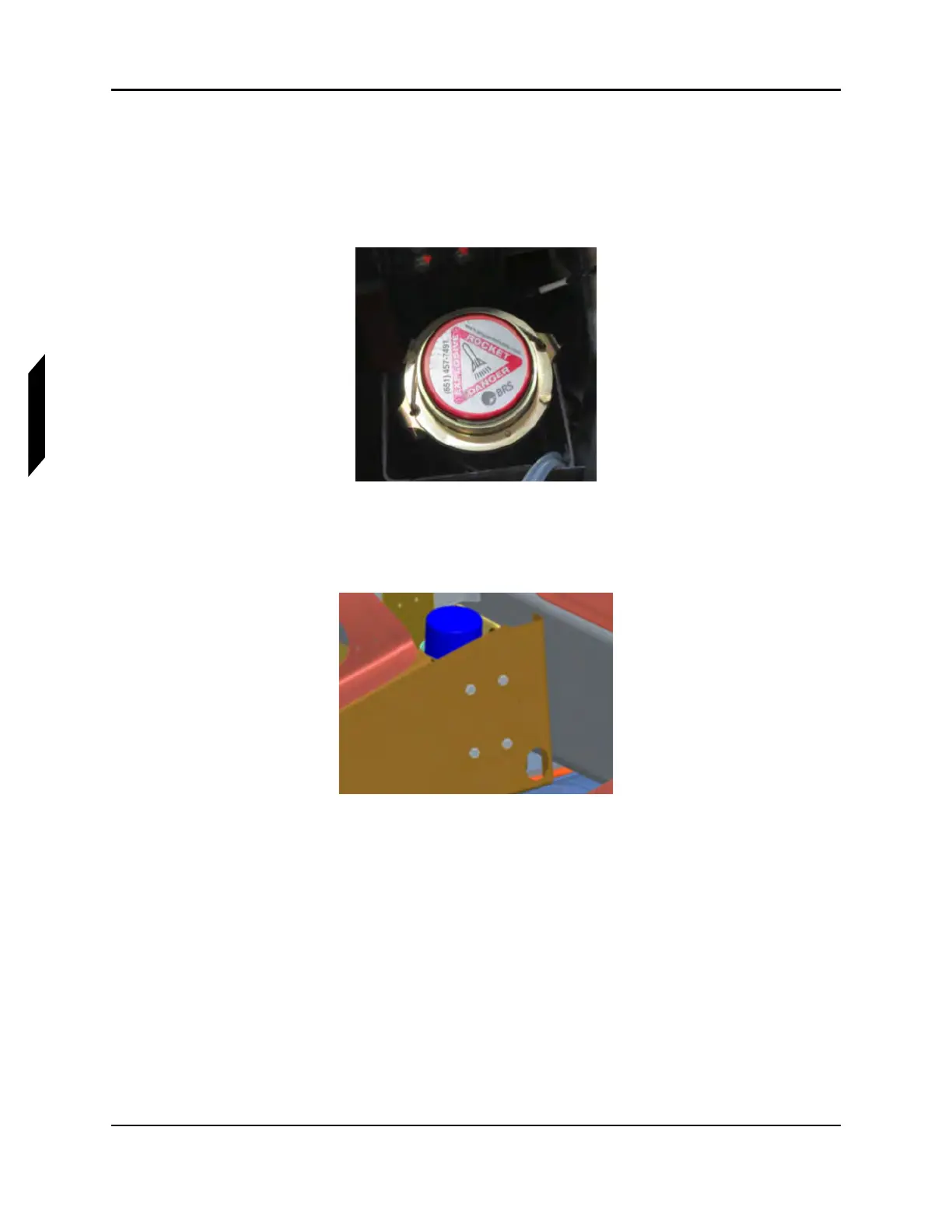

FIGURE 19-16
SECURE ROCKET TO ICON A5 ROCKET MOUNT BRACKET
2. Fasten the rocket mount into the proper location in the ICON A5. Four AN3 bolts secure the
rocket mount to the starboard center root rib.
FIGURE 19-17
SECURE ROCKET MOUNT TO STARBOARD CENTER ROOT RIB
3. Connect electrical witness switch installed on the side of the rocket tube assembly to ICON A5
airframe electrical system.
