ICON PARACHUTE SYSTEM (IPS) / EXTRACTION ROCKET 19-27
CHANGE C1 ICON A5 / MAINTENANCE MANUAL

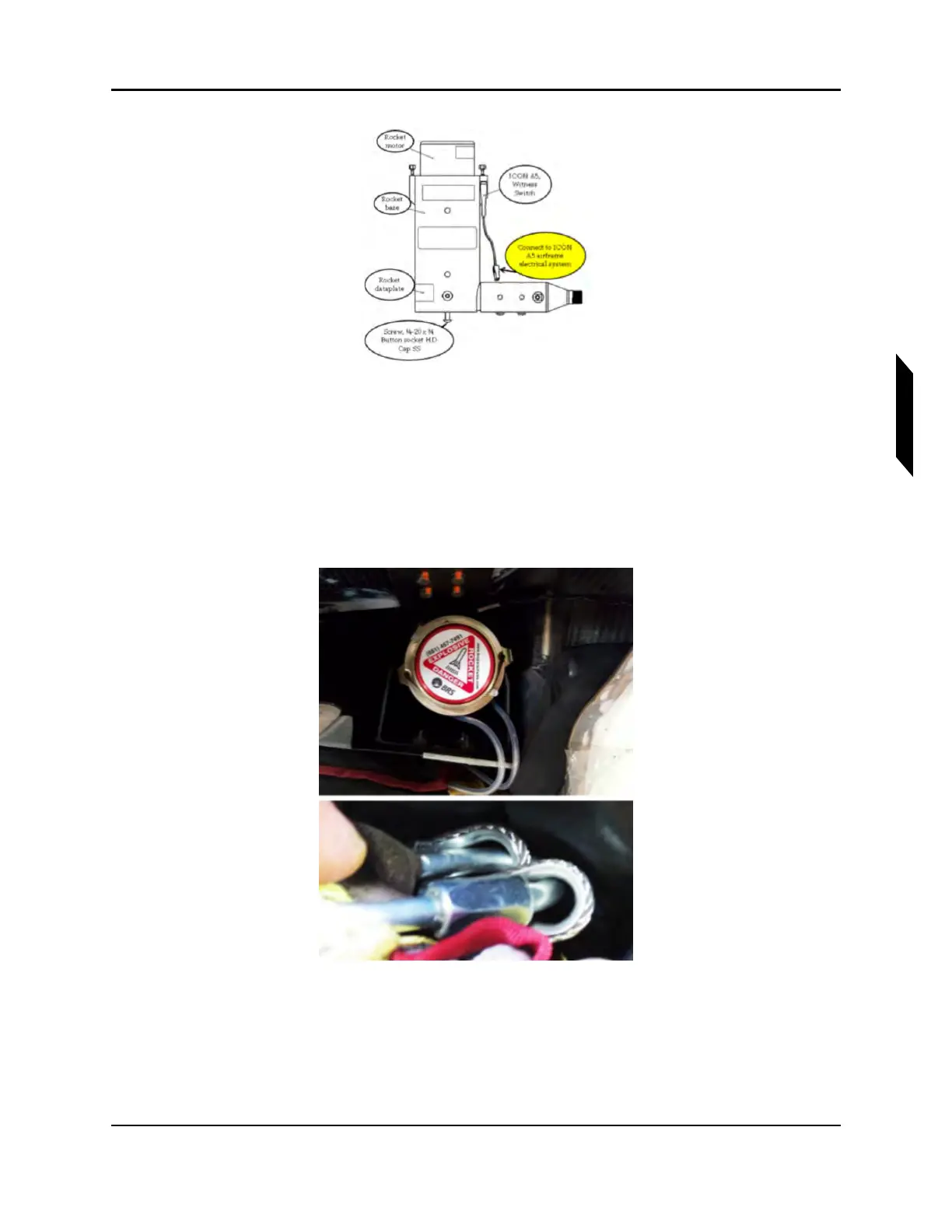

FIGURE 19-18
90° ROCKET ASSEMBLY
4. The rocket lanyard is already attached to the deployment bag at BRS Aerospace. The rocket
lanyard will need to be routed and attached to the BRS 601 rocket in the ICON A5 rocket bay.
Once the required length of lanyard is determined, the remaining length should be “looped” and
secured with the small cable ties supplied. The rocket lanyards should be routed alongside of,
rather than over the top of the rocket. They MUST NOT be routed under any harness or struc-
ture. Coil the lanyards without knotting them. Place the two cable ties around the lanyards so that
they can be neatly stowed.
FIGURE 19-19
SECURING ROCKET COLLAR LANYARD AND INCREMENTAL HARNESS
5. Ensure that the opposite end of the incremental harness, shown in under the left side flap, is
connected to the deployment bag with a Lark’s head knot.
