ICON PARACHUTE SYSTEM (IPS) / EXTRACTION ROCKET 19-29
CHANGE C1 ICON A5 / MAINTENANCE MANUAL
WARNING: Confirm that the safety pin and flag are installed in the activation
handle before continuing to rocket installation section.

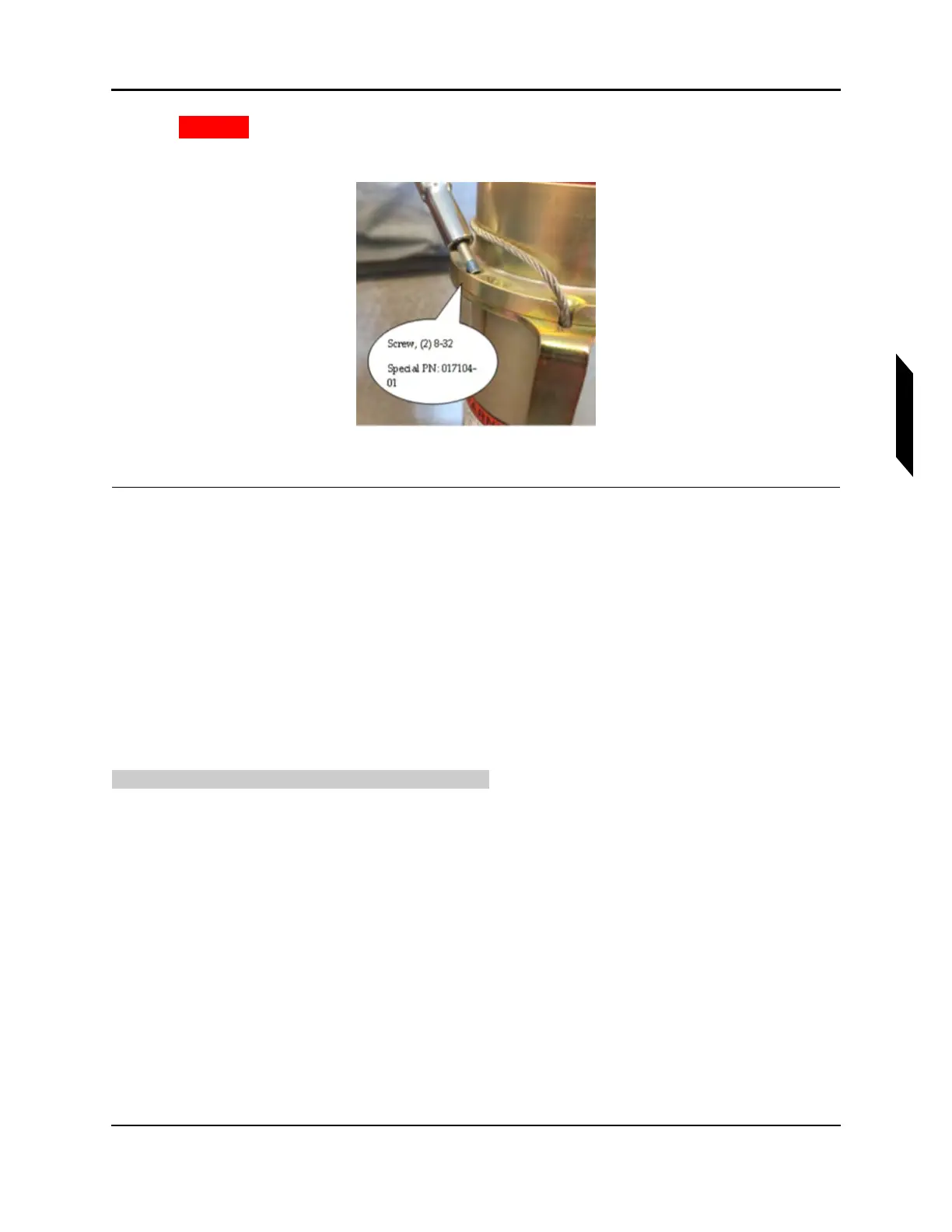

FIGURE 19-22
SECURING ROCKET COLLAR TO BRS 601 ROCKET TUBE
VERIFICATION METHOD:
The procedure was completed when the component has been installed and the safety pin and flag are
installed on the activation handle.
RELATED INFORMATION:
"Removal and Installation of Inspection Panels and Fairings" on page 3-34
"Cockpit Panels Removal and Installation" on page 3-36
19.6.4.3 Arming Extraction Rocket
Use the following tasks to arm the extraction rocket.
TASK INFORMATION:
Type of Maintenance
Line
Level of Certification
LSA-RM
Task Specific Training Required
No
Special Tools Required
None
Parts Required
