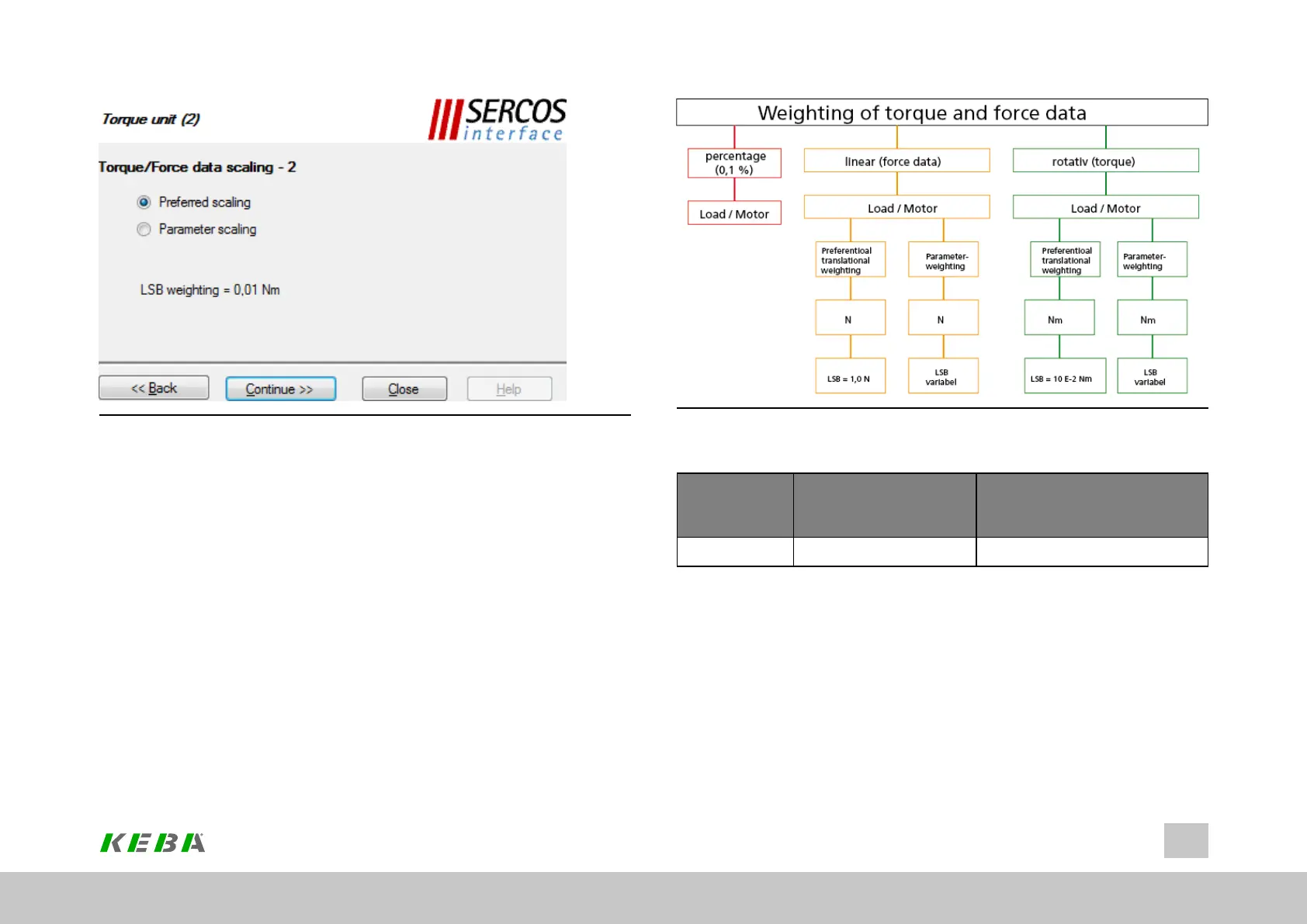

Image 8.18: “Standardization profile - Sercos torque/power(2)” screen
The “Power/torque weighting method" figure below shows the structure with which
the acceleration is scaled using the Sercos wizard. A distinction must be made
between linear and rotary weighting here. In percentage weighting the permanently
permissible standstill torque of the motor is used as the reference value. All
torque/force data is given in [%] with one decimal place.
Torque polarity
The polarity of the torque can be inverted according to the application. A positive
torque reference indicates clockwise rotation (looking at the motor shaft).
ID No.: 0842.26B.5-01Date: 09.2020
ServoOne- Device Help
238
8 Motion profile
Image 8.19: Force/torque weighting method
Linear weighting
Unit Weighting factor
Parameter weighting
(LSB)
Nm 1 LSB=Unit*Exponent
Table 8.10: Weighting for linear motion (default setting)
