Remote RMX-3200 Version 5.2x Configuration Guide

Configuring Modules: Configuring Modules Using Web Interface

24-11

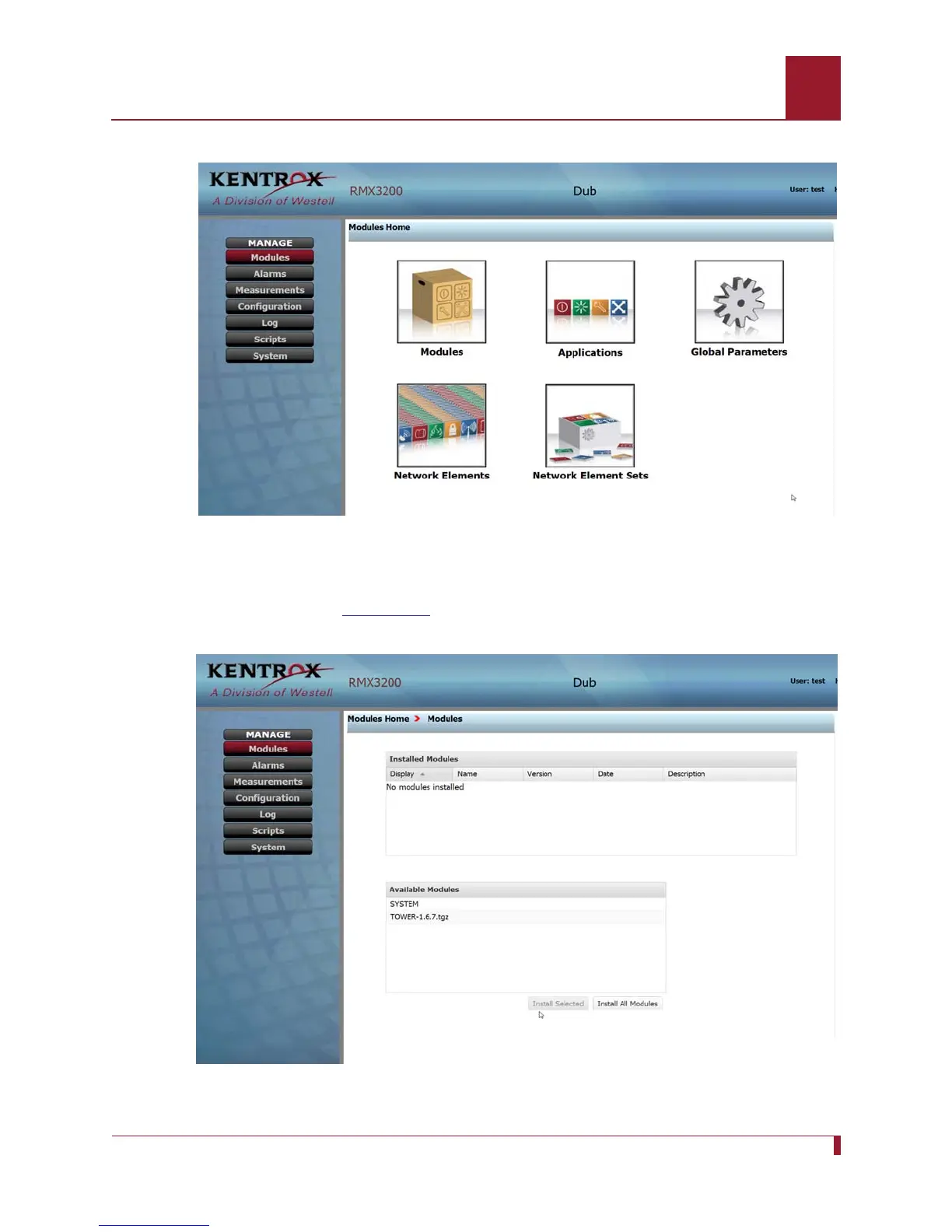

Figure 24-1 The screen displays RMX-3200 Web Interface Modules Home page

3. From Modules Home page, click the Modules icon. The Modules page will be

displayed. See

Figure 24-2.

Figure 24-2 The screen displays available modules, here in a magnified view
