KLM MD-11 - Page 118

To Next Page

To Previous Page

MD-11 Flight Crew Operations Manual

Aircraft General -

Controls and Displays

Agen.30.28

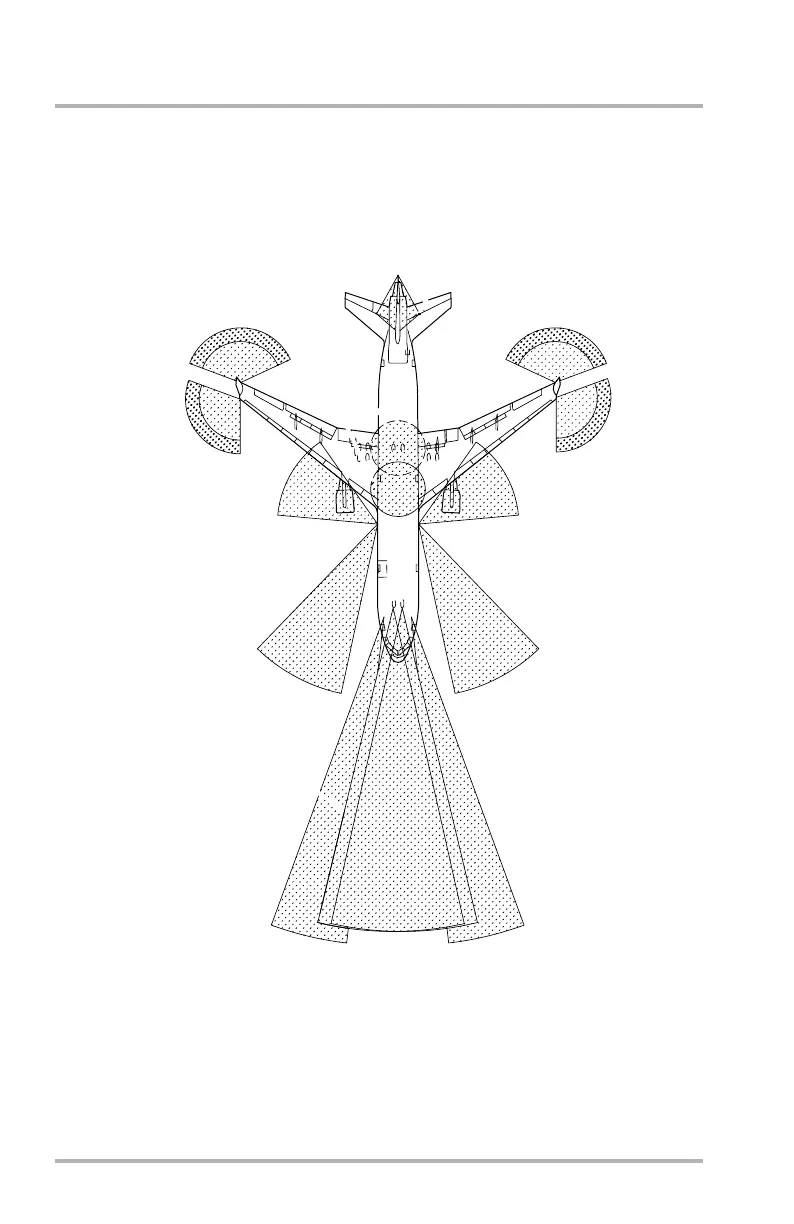

Exterior Lighting Illumination Zones

LOGO - white (if installed)

1 AFT NAV - white

1 AFT HI INTSTY - white

1 FWD NAV - green

2 FWD HI INTSTY - white

NOSE TAXI AND

LANDING - white

RUNWAY TURNOFF - white

1 AFT NAV - white

1 AFT HI INTSTY - white

2 FWD HI INTSTY - white

UPPER AND LOWER BEACON - red

WING - white

1 FWD NAV - red

DB1-2-1900

October 02, 2006
