KLM MD-11 - ND Flight Plan Symbology (Sheet 1)

MD-11 Flight Crew Operations Manual
k
Instrumentation and Navigation -
Controls and Displays
Inst.30.11

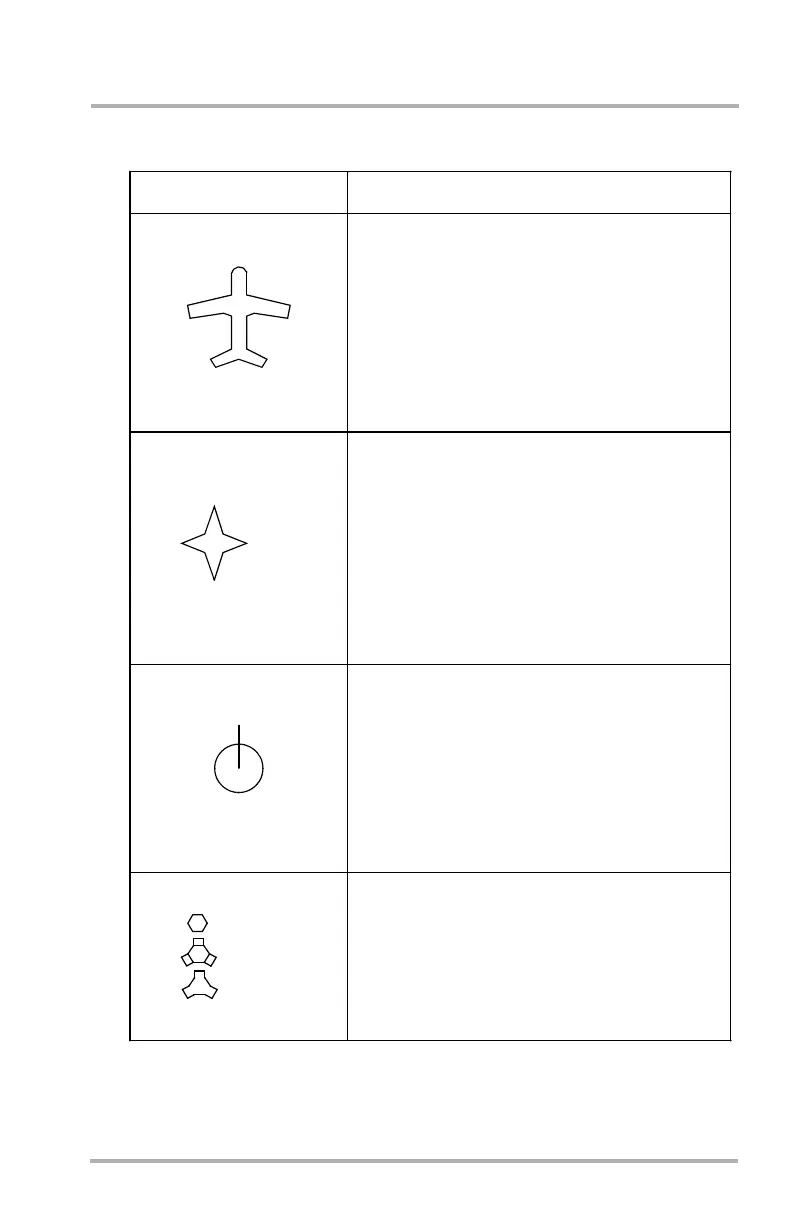

ND Flight Plan Symbology (Sheet 1)
LB1-3-0321
U.S.
SELECTED
Airports
VOR
EXPLANATION
Airports
VOR
ECP.
Airplane Symbol
Waypoint and Waypoint Data
The aircraft symbol is visible in all modes. In the
PLAN mode the symbol will be displayed only if
the present position of the airplane is within
the flight plan segment and range. Symbol
will point to true north, except in polar ranges
above the 85º latitude when symbol will be
referenced relative computed FMS track. In the
MAP mode symbol will be oriented relative to
aircraft heading.
The active (next) waypoint and its identifier are
displayed in magenta; all other flight plan way-
points are displayed in white.
Waypoint data consists of any constraint data
from the FMS at the waypoint. Waypoint data is
displayed in the same color (magenta or white)
as the associated waypoint. Display of way-
point data is selected/deselected by pushing the
Destination and departure airports are white and
are displayed with runway lines (when available),
or as parallel lines indicating runway orientation
(scale 40 nautical miles or less).
Display of Non-Origin/Destination airports (dis-
played as cyan circles) may be selected or de-
selected with the ARPT mode switch on the
Non-tuned VOR, DME, or VOR/DME stations are
displayed in cyan and can be selected or de-
selected by pushing the VOR switch on the
MSP. Tuned stations (through MCDU) are dis-
played in white and are not deselectable through
the ECP.
DATA switch on the ECP.
PERSAN
12:00
FL230
PERSAN
12:00
FL230
VOR
VORTAC
DME/TACAN
October 02, 2006
