KLM MD-11 - Functional Schematic; Pneumatic Diagram

MD-11 Flight Crew Operations Manual
k
Ice and Rain Protection Chapter Ice
Functional Schematic Section 50
Ice.50.1
Ice.50 Ice and Rain Protection-Functional Schematic

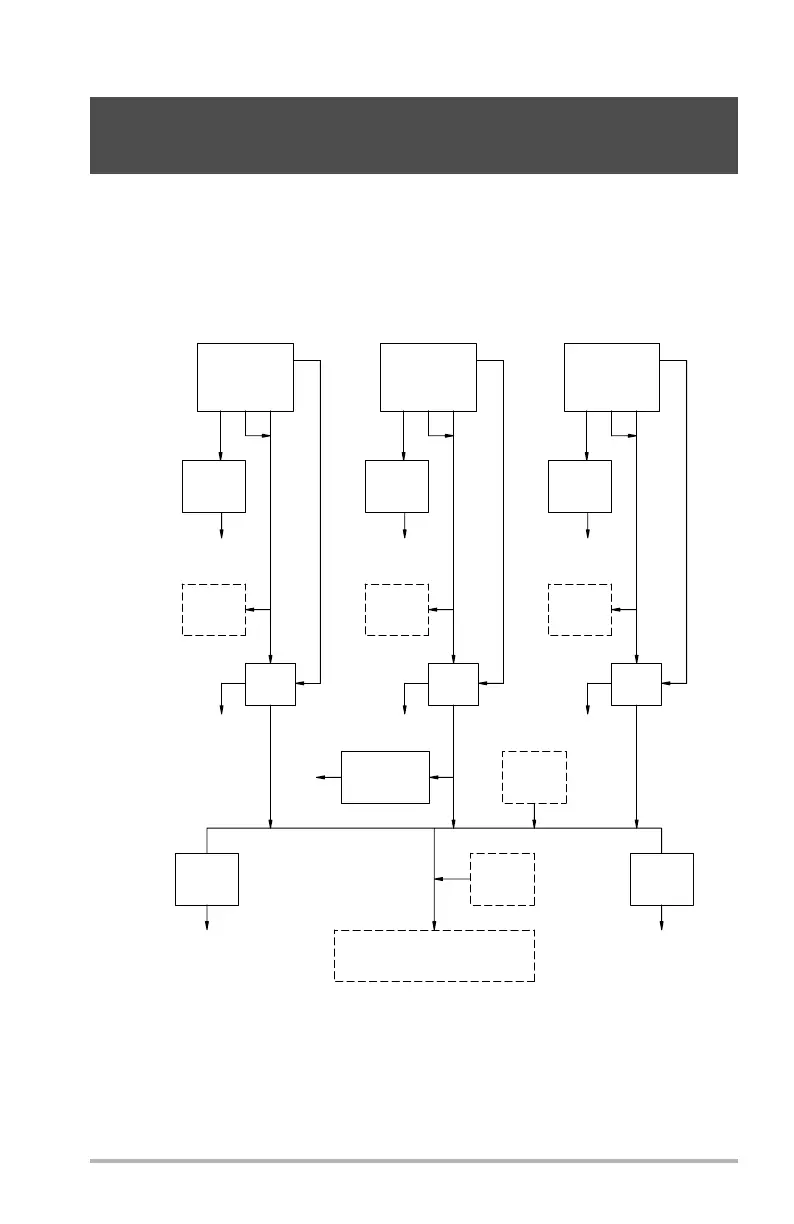

Pneumatic Diagram
FAN
BLEED
HI
LO
ENGINE
INLET ICE
PROTECTION
PRE-
COOLER
OVERBOARD
ENG
START
(REF)
OVERBOARD
FAN
BLEED
HI
LO
ENGINE
INLET ICE
PROTECTION
PRE-
COOLER
OVERBOARD
ENG
START
(REF)
OVERBOARD
FAN
BLEED
HI
LO
ENGINE
INLET ICE
PROTECTION
PRE-
COOLER
OVERBOARD
ENG
START
(REF)
OVERBOARD
HORIZONTAL
STABILIZER
ICE PROTECTION
APU
SUPPLY
GROUND
CONNECTION
AIR CONDITIONING, LAVATORY VENTS,
CARGO COMPARTMENT HEATING, ETC.
WING ICE
PROTECTION
WING ICE
PROTECTION
ENG 1
ENG 2
ENG 3
DB1-2-1780
October 02, 2006
