KLM MD-11 - Cockpit Lighting Arrangement

MD-11 Flight Crew Operations Manual
k
Aircraft General -
Description and Operation
Agen.10.30

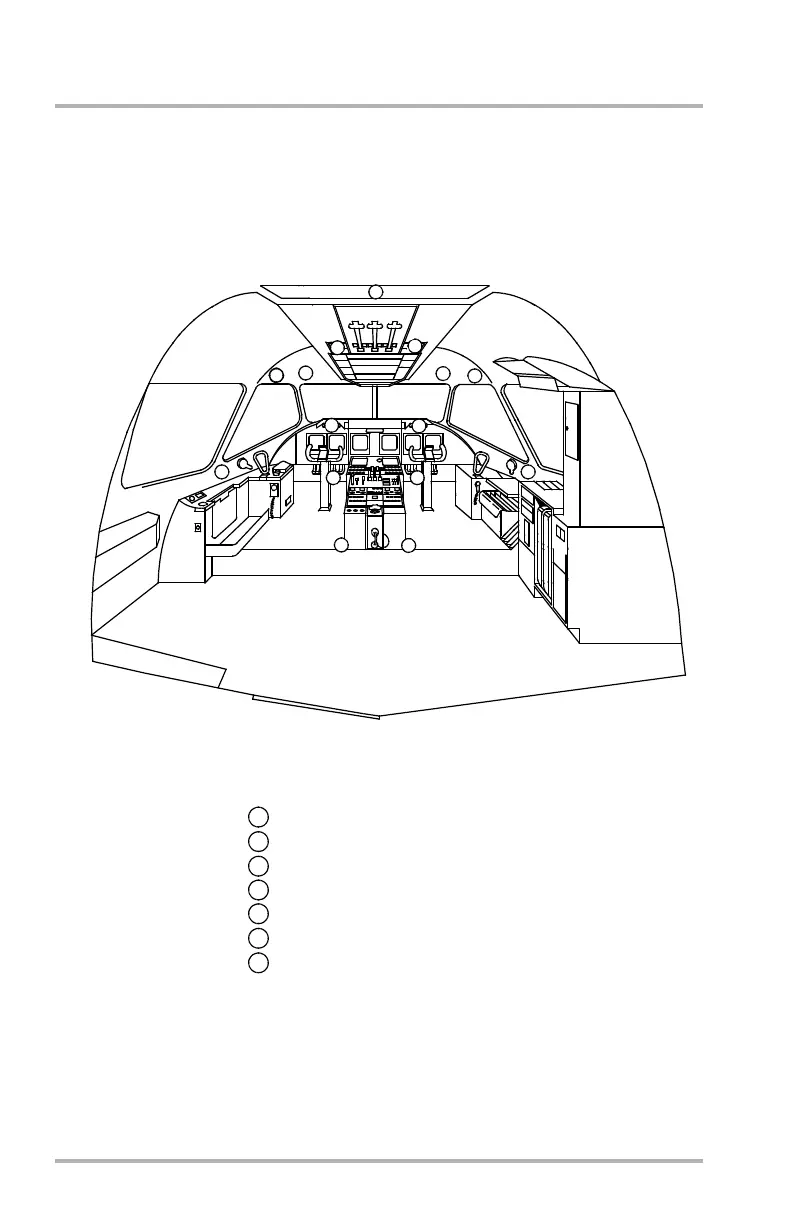

Cockpit Lighting Arrangement
DB1-2-1899
LEGEND
1
2
3
4
5
6
7
2
3
4
5
6
7
7
7
7 FLOOR LIGHTS
6 BRIEFCASE LIGHTS
5 INSTRUMENT PANEL FLOODLIGHTS
4 OVERHEAD PANEL FLOODLIGHTS
3 MAP LIGHTS
2 PEDESTAL FLOODLIGHTS
1 COCKPIT DOME LIGHT
DB1-2-1974
October 02, 2006
