Elec.30 Electrical-Controls and Displays
Electrical Control Panel
1. SYSTEM SELECT/MANUAL Switch - amber
This is an alternate action switch that allows selection between manual and
auto modes.
SELECT illuminates amber if the electrical system reverts from auto to
manual. In this case, the SEL ELEC SYS MAN alert will be on the EAD and
the crew should push this switch to extinguish the SELECT light.
MANUAL illuminates amber if the system is in manual.
MANUAL flashes amber if the system is in auto and a switch on the ELEC
control panel has been pushed that has no effect in auto.
2. SMOKE ELEC/AIR Selector
This selector controls the electrical and air smoke isolation functions when
the system is in auto or manual mode.
NORM - All gen relays, aux pwr relays, bus tie relays, and dc tie RCCBs are
in normal auto or manual mode. Air system operation is normal.

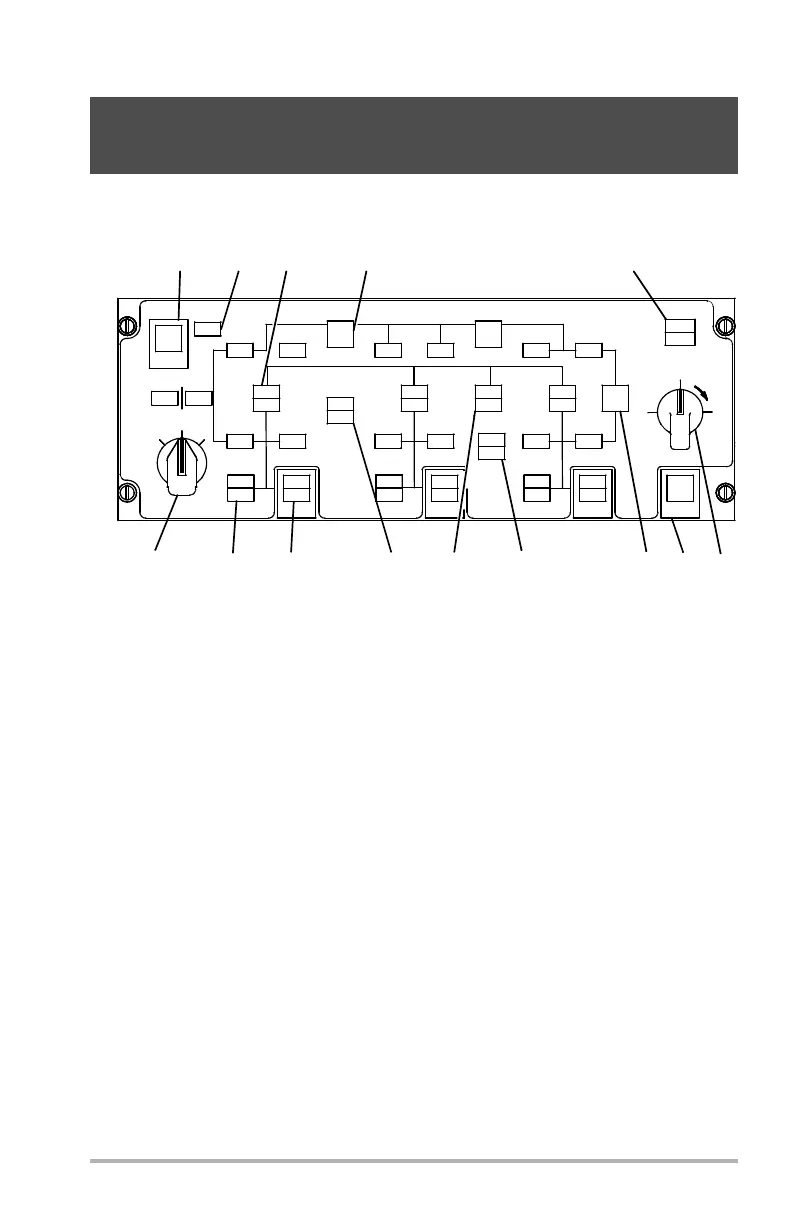

FORWARD OVERHEAD PANEL
