MD-11 Flight Crew Operations Manual
k
FMS -
Controls and Displays
FMS.30.57
WAYPOINT Page
The WAYPOINT page displays waypoint data. This page is accessed from the
REF INDEX page by pushing LSK 2L on that page.
This page is initially blank except for the title, the IDENT and boxes in 1L which
indicate that the flight crew must type in the waypoint identifier.

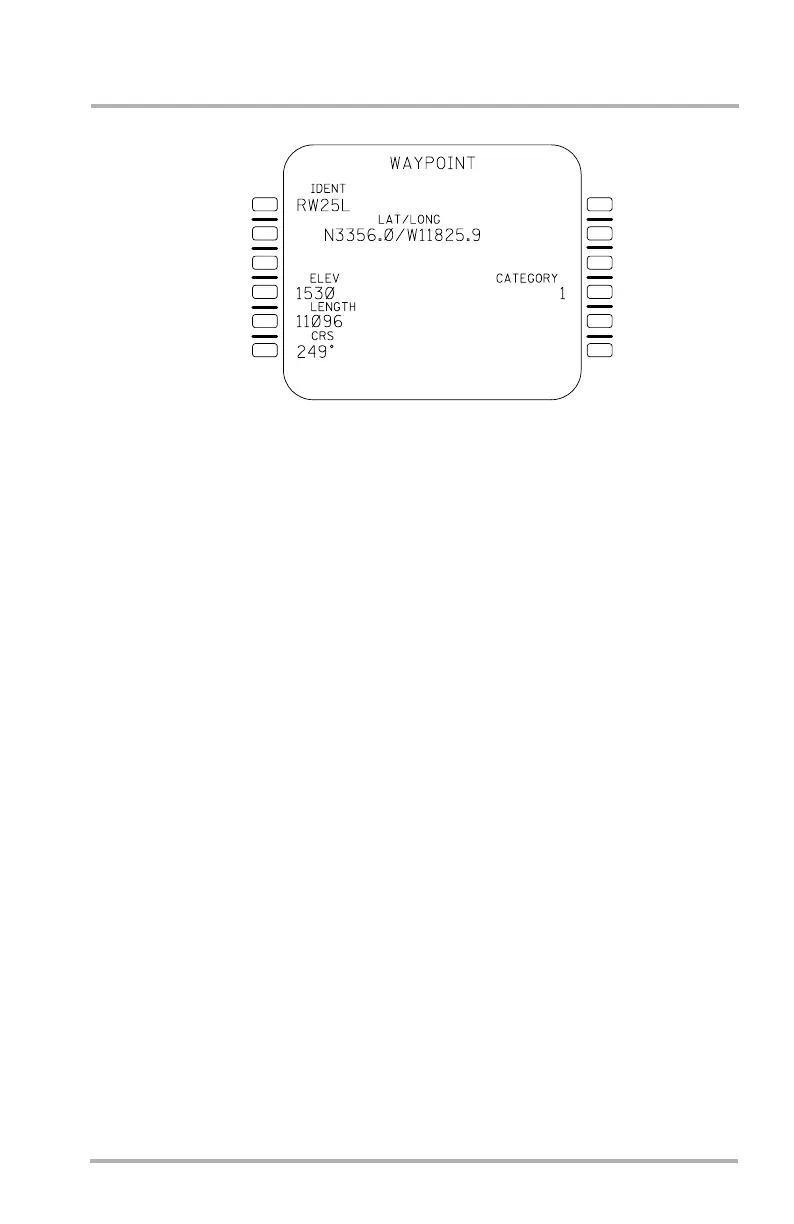

The illustration above shows a format for a runway waypoint. If the selected
runway contains an ILS approach, ILS category of either 0, 1, 2, or 3 will be
displayed in 4R and runway data will be displayed in 4L, 5L, and 6L. For other
waypoint types such as those from airway charts or other flight crew-defined
waypoints, the runway data in 4L, 5L and 6L will be blank.
Exit from the WAYPOINT page is by use of the mode keys.
LB1-3-0097
1L
2L
3L
4L
5L
6L
1R
2R
3R
4R
6R
5R
October 02, 2006
To Next Page
