KLM MD-11 - Fuselage Compartments

To Next Page

To Previous Page

MD-11 Flight Crew Operations Manual

Aircraft General -

Components

Agen.20.4

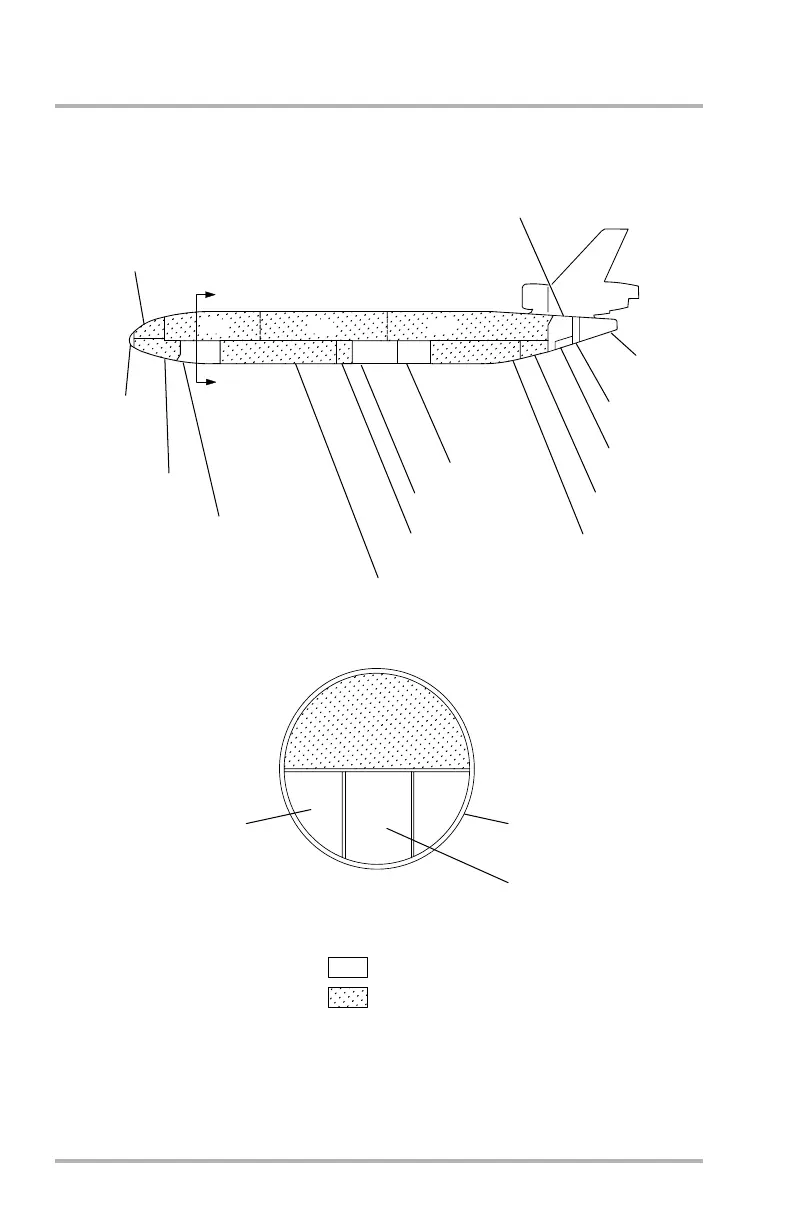

Fuselage Compartments

DB1-2-1882

RADOME

AVIONICS

FORWARD CARGO

CENTER ACCESSORY

CENTER CARGO

AFT CARGO

APU

TAIL CONE

FWD

MID

AFT

Not Pressurized

Pressurized

WHEEL WELL

COCKPIT

AFT FUSELAGE

CENTER WING TANK

AIR CONDITIONING (2)

AIR COND

PACK 3

AIR COND

PACK 1 & 2

VIEW A

NOSE WHEEL WELL

DB1-2-1882

AFT

ACCESSORY

NOSE WHEEL WELL AND
