KLM MD-11 - Hydraulic Flight Controls

MD-11 Flight Crew Operations Manual
k

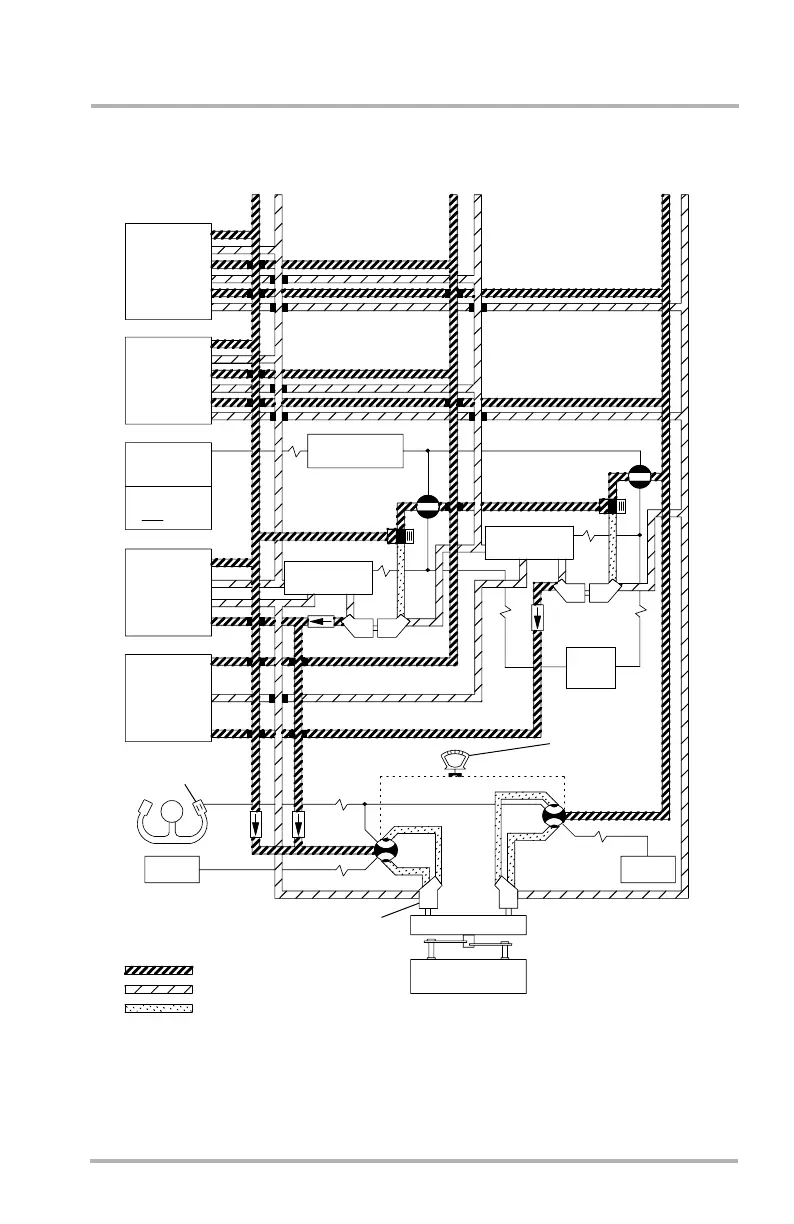

Flight Controls -
Functional Schematic
Flt.50.5
Hydraulic Flight Controls
DB1-2-1735
P M
TO
LEFT/RIGHT
WING
PRIMARY AND
SECONDARY
CONTROLS
TO
ELEVATOR
CONTROLS
EAD
RUD STBY
OFF
TO
UPPER
RUDDER
CONTROLS
TO
LOWER
RUDDER
CONTROLS
FCC-2
HYDRAULIC MOTOR
(TYPICAL 2 PLACES)
GEAR BOX
HORIZONTAL
STABILIZER
FCC-1
TRIM HANDLES
FROM
HYD SYS 3
P
M
UP
DN
2
1
1-2-3
DEU
FROMFROM
HYD SYS 2 HYD SYS 1
UP
DN
TRIM SWITCH
H&C
COMPENSATOR
COMPENSATOR
PRESSURE
STANDBY
RETURN
