KLM MD-11 - Flap Limit, Yaw Damp, Elevator Feel and LSAS

MD-11 Flight Crew Operations Manual
k
Flight Controls -
Controls and Displays
Flt.30.10
Flap Limit, Yaw Damp, Elevator Feel and LSAS
1. FLAP LIMIT MANUAL Light - amber
MANUAL - Illuminates amber when both flap limiter channels fail, or when
the FLAP LIMIT selector is in OVRD 1 or 2.
2. FLAP LIMIT Selector
The FLAP LIMIT selector is used to manually override the auto mode of the
flap limiter.
AUTO - The flap limiter automatically retracts the flaps if the airspeed
exceeds limits for flap settings between 22 and 50 degrees.
OVRD 1 or 2 - Automatic flap limiting is bypassed.
3. YAW DAMP and LSAS Switches - amber
OFF - When a YAW DAMP or LSAS switch is pushed, the respective control
channel shuts off and OFF illuminates amber. With OFF illuminated, pushing
a YAW DAMP or LSAS switch engages the respective control channel, if not
failed.
FAIL - The respective FAIL light automatically illuminates amber during a
failure of a yaw damper or LSAS control channel, and the failed control
channel shuts off.
OUTBD
OUTBD
AUTO
LSAS
LEFT
RIGHT
INBD
INBD
HI
LO
1
1
2
2
A B
AUTO
OVRD
1
2
FLAP LIMIT ELEV FEEL UPR YAW DAMP
PULL FOR MANUAL
1
FAIL
OFF
B
A
LWR YAW DAMP
FAIL
OFF
FAIL
OFF
FAIL
OFF
FAIL
OFF
FAIL
OFF
FAIL
OFF
FAIL
OFF
MANUAL MANUAL

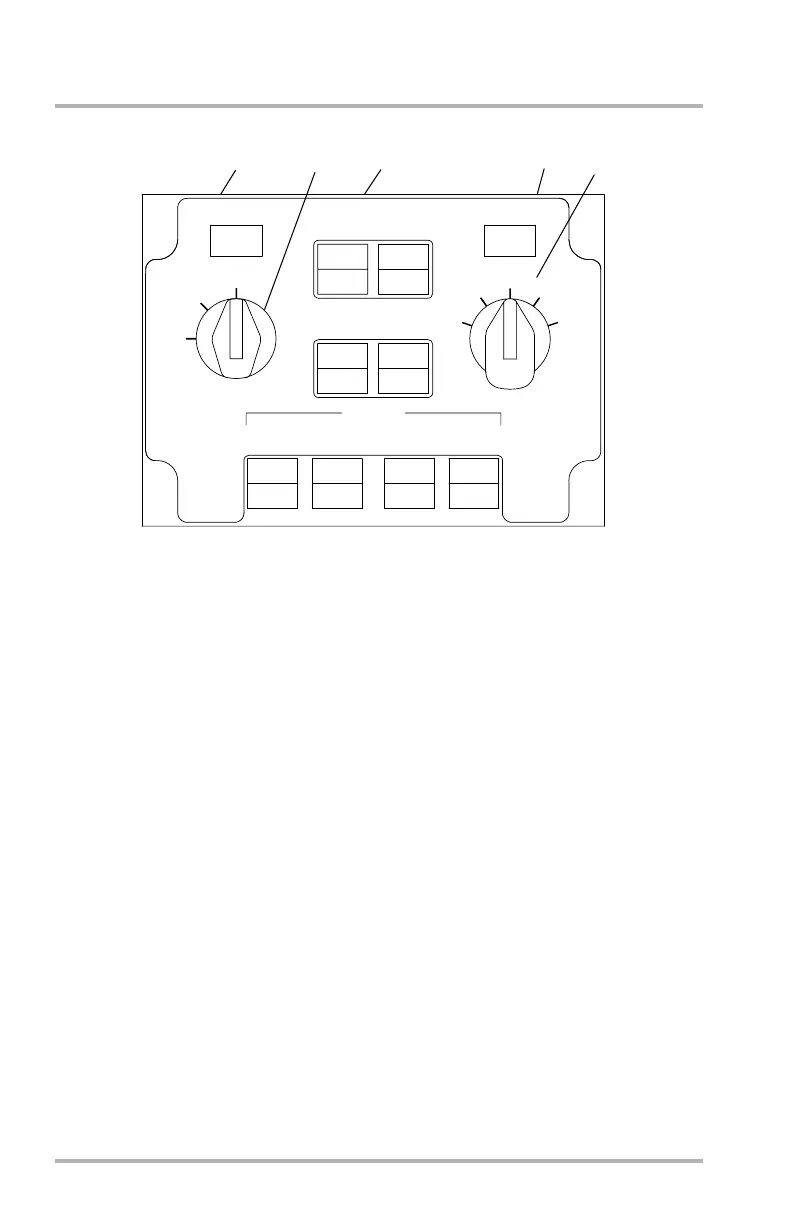

FORWARD OVERHEAD PANEL, RIGHT SIDE
DB1-2-1744
2
3
4
5
October 02, 2006
