Flight Controls -
Controls and Displays
Flt.30.14
SD Synoptic - CONFIGURATION
1. Elevator Load Feel Speed
ELF SPD - The speed is displayed when ELF is in MANUAL by an arrow
(reference speed bug) pointing to the current ELF reference speed.
With ELF in MANUAL and reference speed not available, the ELF arrow
(reference speed bug) is not displayed.

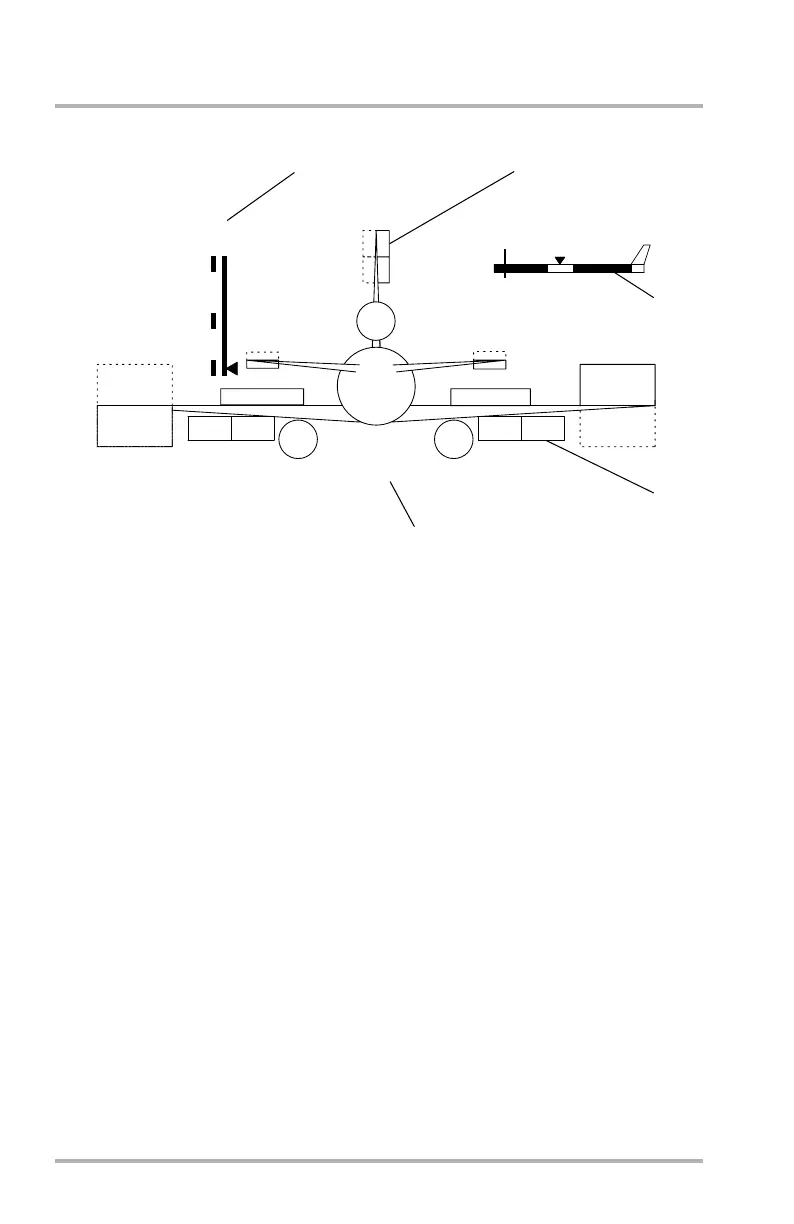

2. Rudder, Elevator, Spoiler, Aileron Position - grey, white, green or amber
Faired - A grey outline appears.
Deflected - A white box appears at the respective location. The box size is
proportional to the amount of deflection.
Fully Deflected - A solid green box appears at the respective location.
Position Not Available - An amber "X" appears in the respective control
surface box.
During takeoff, the aileron symbols deflect to show the 15° trailing edge
down of the outboard ailerons and the 11.5° trailing edge down of the inboard
ailerons. (Applies only to airplanes with A1 takeoff deflected aileron package
installed).
A 30 second delay after flaps are lowered to takeoff range may occur before
green aileron boxes are displayed at full deflection.
