LSAS Channels
LSAS Channels

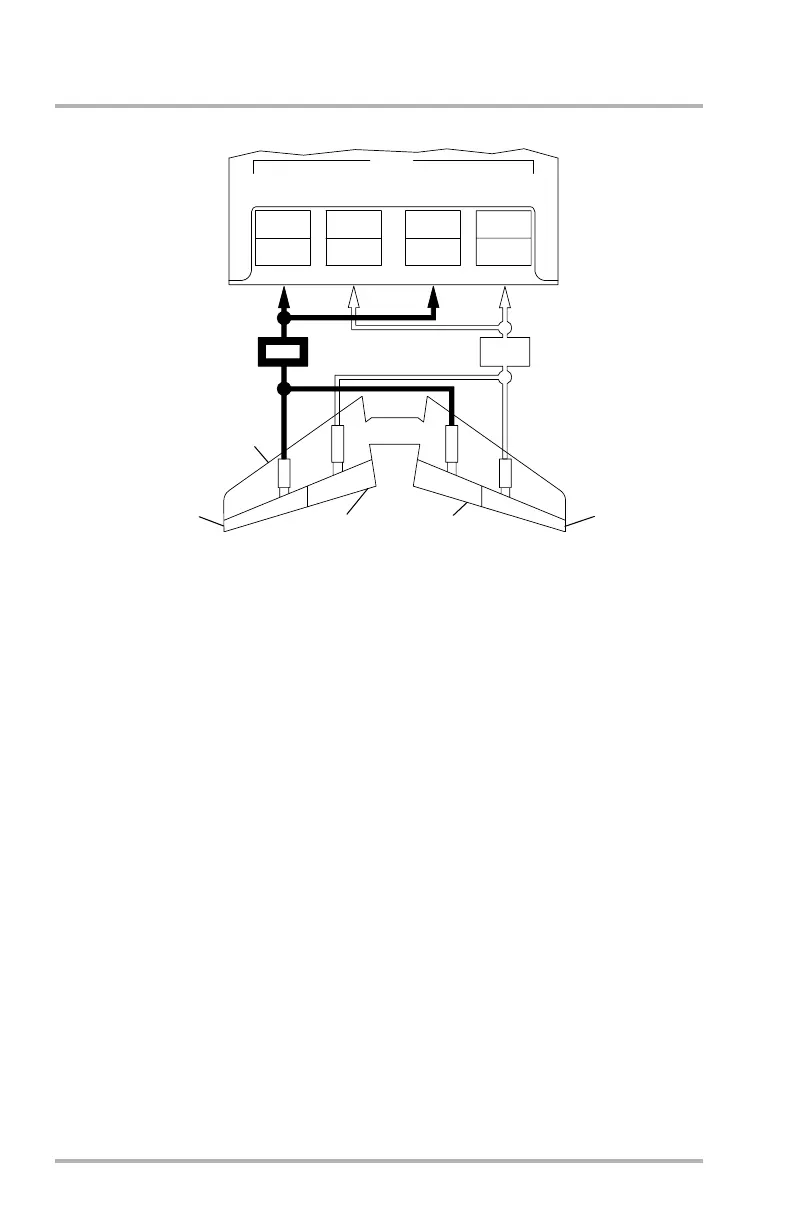

LEFT OUTBD/RIGHT INBD - Flight Control Computer 2 (FCC2) controls
the left outboard and the right inboard hydraulic actuators at the elevator
segments through two of four discreet LSAS channels.
RIGHT OUTBD/LEFT INBD - Flight Control Computer 1 (FCC1) controls
the right outboard and the left inboard hydraulic actuators at the elevator
segments through two of four discreet LSAS channels.
DB1-2-1737
OUTBD
OUTBD
LSAS
LEFT
RIGHT
INBD
INBD
FAIL
OFF
FAIL
OFF
FAIL
OFF
FAIL
OFF
FCC 2
FCC 1
HORIZONTAL
STABILIZER
LEFT
OUTBOARD
ELEVATOR
LEFT
INBOARD
ELEVATOR
RIGHT
OUTBOARD
ELEVATOR
RIGHT
INBOARD
ELEVATOR
