KLM MD-11 - Emergency Exits

To Next Page

To Previous Page

MD-11 Flight Crew Operations Manual

Emergency Equipment -

Controls and Displays

Emer.30.10

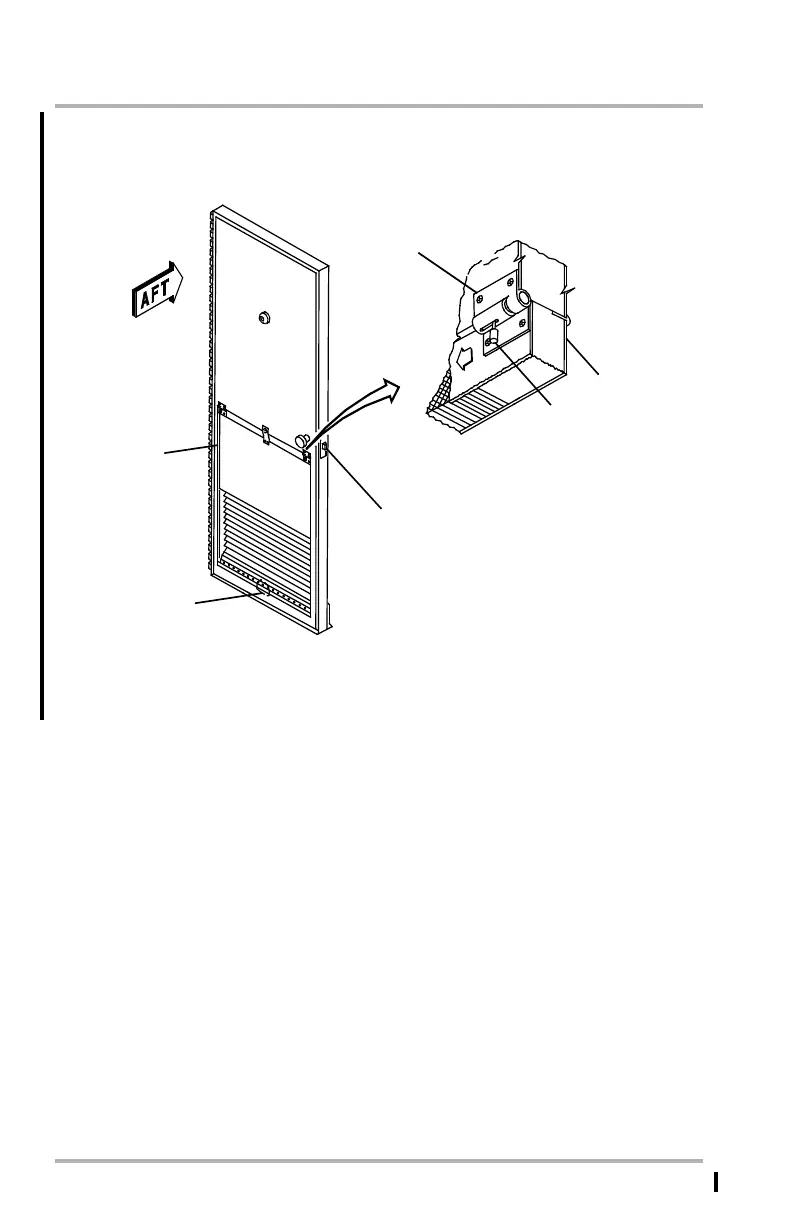

Emergency Exits - Cockpit Door

1. Hinge Release Pin

Slide pin inwards to release lower decompression panel.

BLOWOUT

PANEL

BLOWOUT PANEL

HINGE

BLOWOUT

PANEL

BLOWOUT PANEL

RELEASE LATCH

(VIEW LOOKING AFT)

COCKPIT DOOR

LATCH

LB1-3-0034A(m)
