MD-11 Flight Crew Operations Manual
k
Instrumentation and Navigation -
Controls and Displays
Inst.30.23
Standby Compass

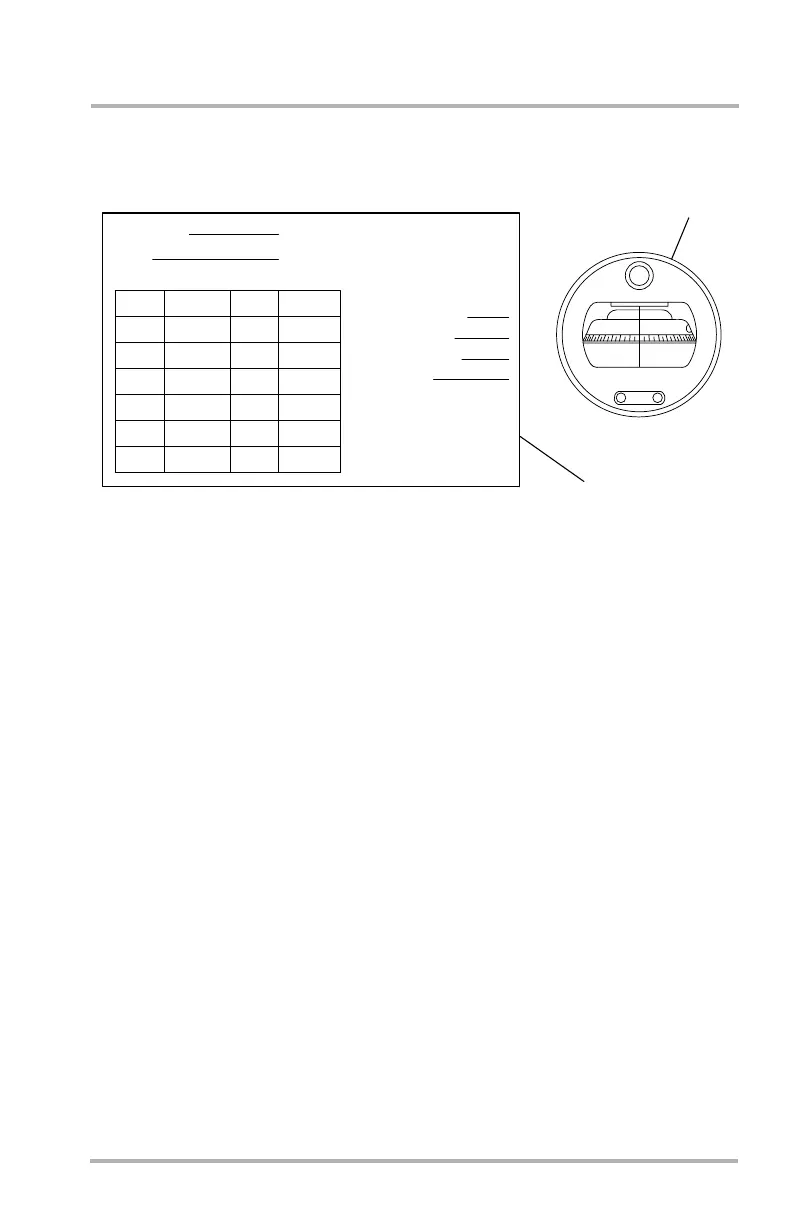

1. Stanby Compass Correction Card
Provides standby compass correction data as set during calibration and
compass check.
2. Standby Compass
Indicates heading of aircraft in relationship to magnetic north.
WINDSHIELD
N
N-S
E-W
3
33
36
240
COMPASS CORRECTION CARD
COMPASS
DATE
FOR
STEER
FOR
AIRPLANE NO.
COMPASS SER.
SWUNG BY
2336938
N
S
30
60
E
120
150
210
W
300
330
STEER
AIRPLANE TYPE
FIRST OFFICER'S INSTRUMENT PANEL
2
1
LB1-3-0180
October 02, 2006
