KLM MD-11 - Emergency Exits - Cabin Door Interior Controls

MD-11 Flight Crew Operations Manual
k
Emergency Equipment -
Controls and Displays
Emer.30.13
Emergency Exits - Cabin Door Interior Controls
SLIDE
ARMED
SLIDE
DISARMED
ROTATE
HANDLE
TO OPEN
EXIT
SLIDE
ARMING
LEVER

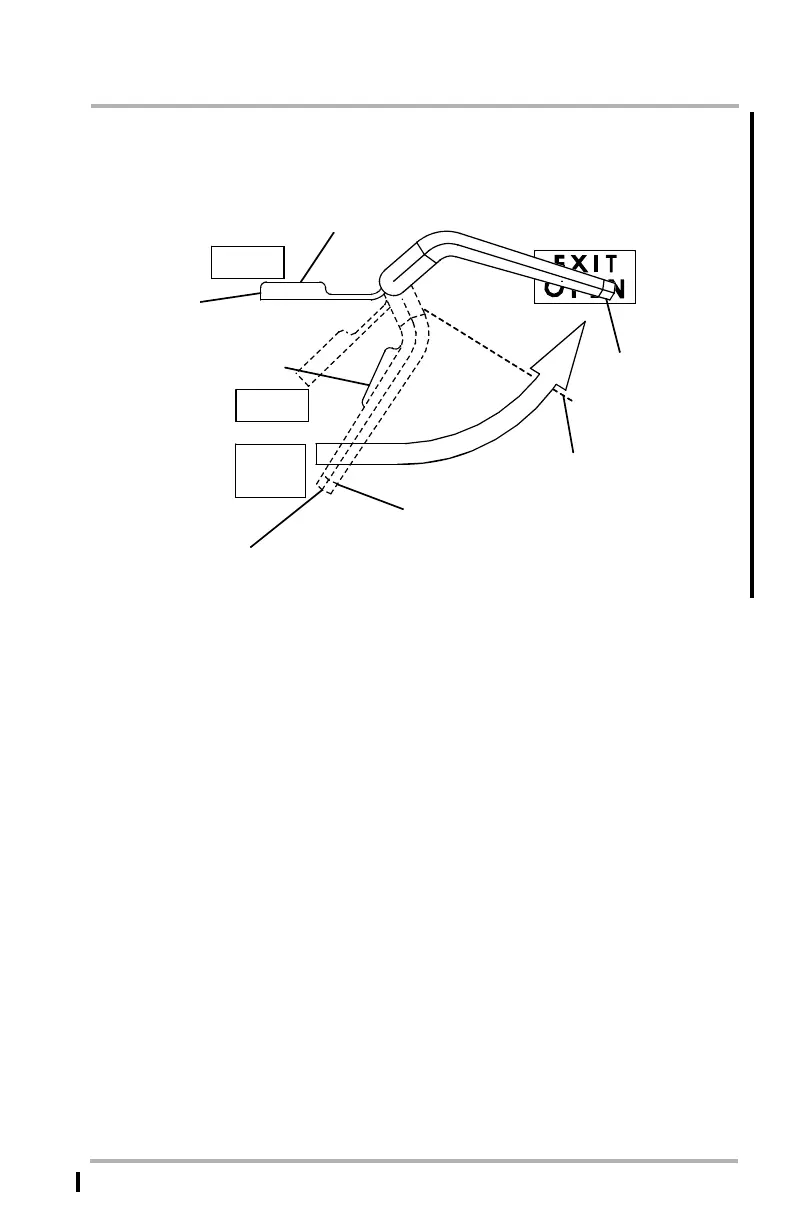

CABIN DOOR INTERIOR CONTROLS (FWD TWO)
(View Looking Forward)
1
2
NEUTRAL
DETENT
EMERGENCY
DOOR
OPEN POSITION
POSITIVE STOP
IF SLIDE IS
DISARMED
EMERGENCY INTERLOCK
OVERRIDE POSITION
DB1-2-2005
November 16, 2009
