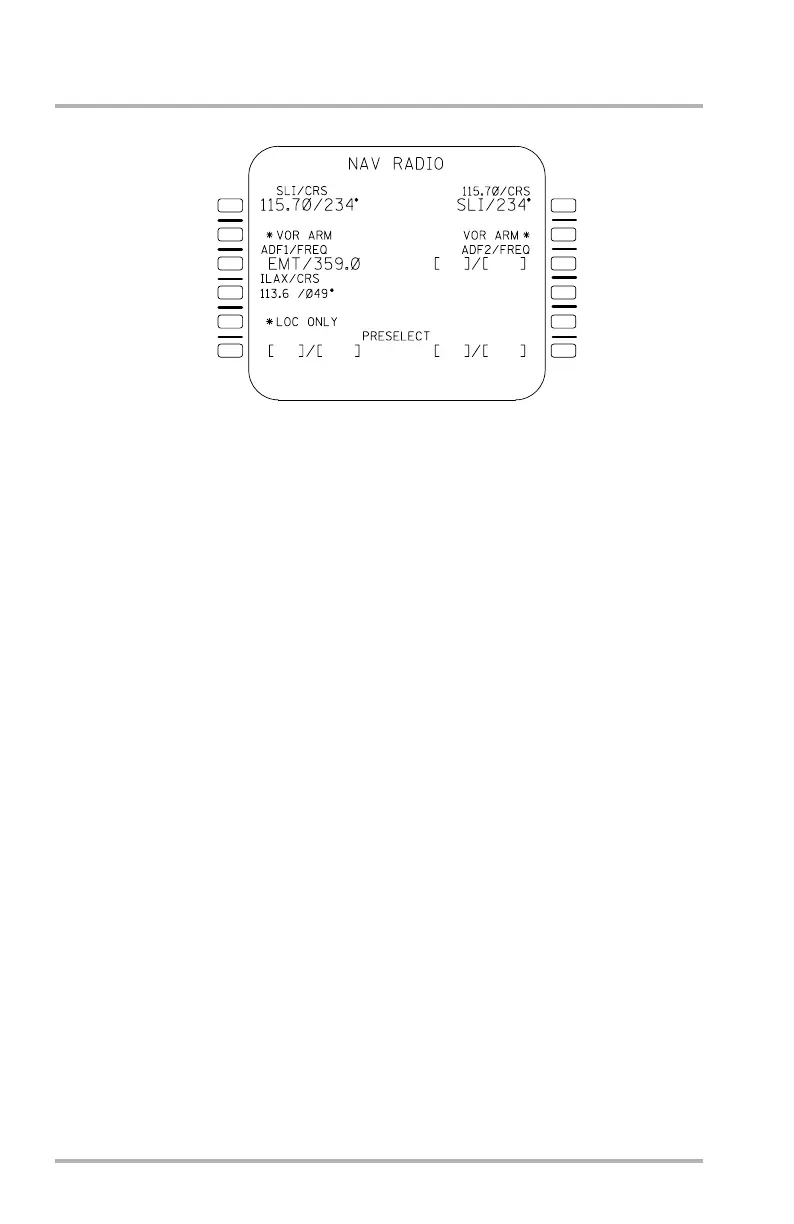

NAV RADIO Page
The NAV RADIO page provides tuning status display and tuning control
capability for the VOR, ADF, ILS, and MLS receivers. It also provides for
selection of the VOR and LOC modes.
The ident, frequency, and course of VOR1 and VOR2 selected for display are
shown in 1L and 1R, respectively. The VOR ident (or frequency) is always
followed by /CRS in the label line. The course may not be entered until a VOR
ident (or frequency) has been defined, but an ident (or frequency) may be entered
without a course. If an ident is entered, the frequency corresponding to that ident
is displayed in the label line in small font. The data line displays the ident and
course value (if any) in large font. If an entered ident is not found in the database,
the message NOT IN DATA BASE is displayed in the SP. If more than one ident
exists for the entered ident, the DUPLICATE NAMES page is displayed and the
flight crew will select the desired ident.
NOTE: Once a radio has been manually tuned, it will not auto tune again
until that radio frequency is cleared.
LB1-3-0114
1L
2L
3L
4L
5L
6L
1R
2R
3R
4R
5R
6R
