KLM MD-11 - Main Gear Door Uplock Indicators

To Next Page

To Previous Page

MD-11 Flight Crew Operations Manual

Landing Gear and Brakes -

Controls and Displays

Land.30.9

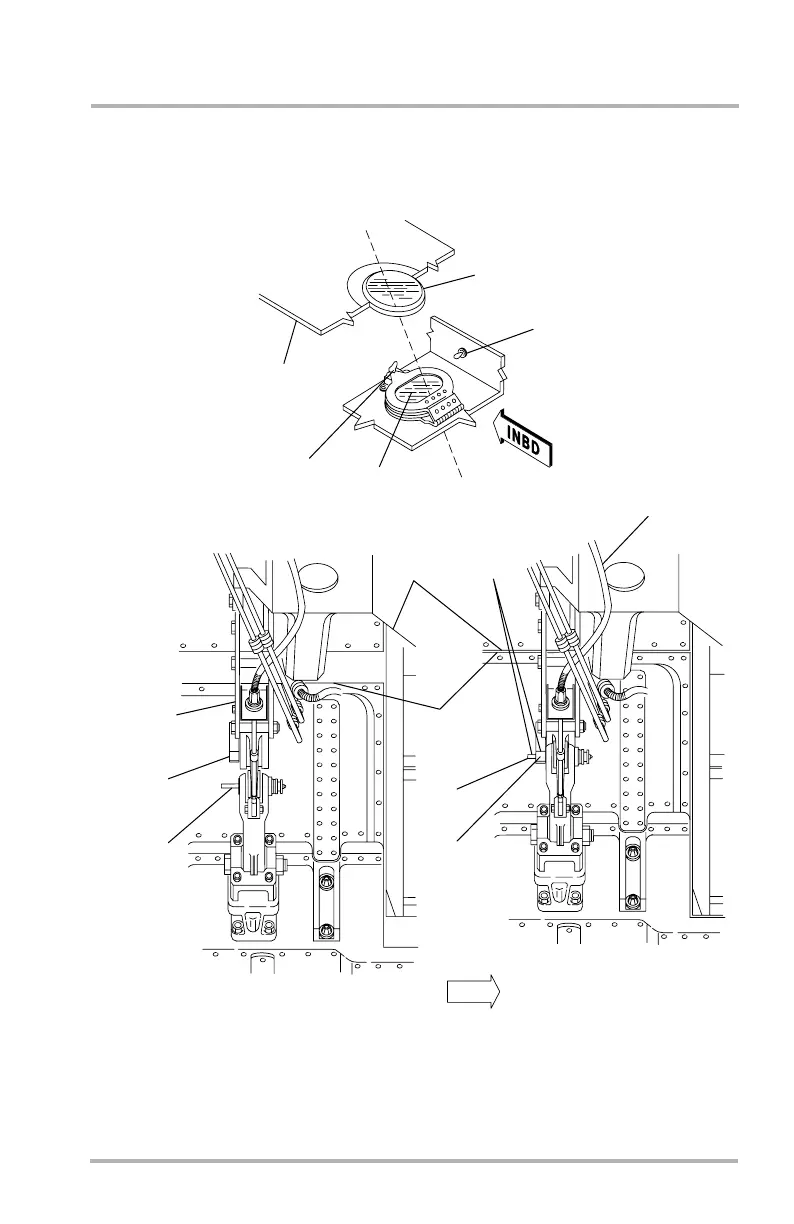

Main Gear Door Uplock Indicators

DOOR PARTIALLY OPEN

DOOR CLOSED AND LATCHED

ALTERNATE GEAR

RELEASE CABLE

RED

STUD

DOOR

OUTBOARD

DOOR

UPLOCK

HOOK

EDGE

LEFT SHOWN, RIGHT OPPOSITE.

LINE OF SIGHT

FLOOR

FASTENER

GEAR WELL

LIGHT SWITCH

FWD

RED

STRIPE

RED

STRIPE

STUD

LB1-3-0166A

GEAR WELL

OUTBOARD

EDGE

October 02, 2006
