Emergency Equipment -
Controls and Displays
Emer.30.8

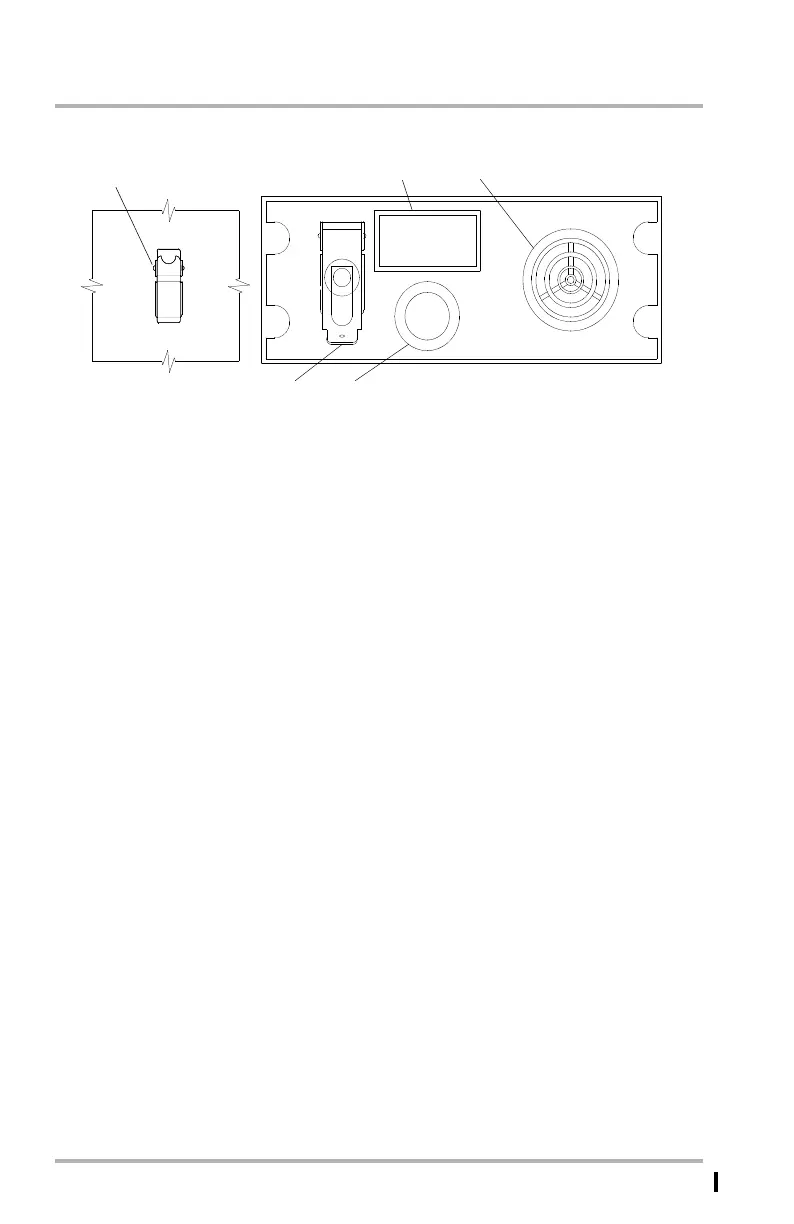

Emergency Evacuation Warning System
1. Evacuation Horn
The evacuation horn will sound to signal the system has been actuated from
the cockpit or the cabin attendant panel.
2. Evacuation Horn Shutoff Switch
Evacuation warning horn may be silenced by pulling switch out from panel.
EVAC lights continue to flash.
3. Evacuation Signal Switch
ON - Actuates evacuation warning horns and EVAC flashing lights at all
applicable stations.
ARM - Arms evacuation warning horns and EVAC flashing lights to all
applicable stations. Cabin attendant may then initiate an EVAC alarm by
actuating the EVAC switch on the cabin attendant panel.
OFF - System cannot be actuated. EVAC light will flash and chime will
sound when the cabin attendant EVAC switch is actuated.
ON
ARM
OFF
EVAC
EVACUATION SIGNAL
5
2
1 4
U
P
L
L
AFT OVERHEAD PANEL
OFF
CABIN ATTENDANT
PANEL
3
DB1-2-1694(m)
EVAC
November 16, 2009
