KLM MD-11 - SD Synoptic - Air (Passenger Configuration)

MD-11 Flight Crew Operations Manual
k
Air -
Controls and Displays
Air.30.9

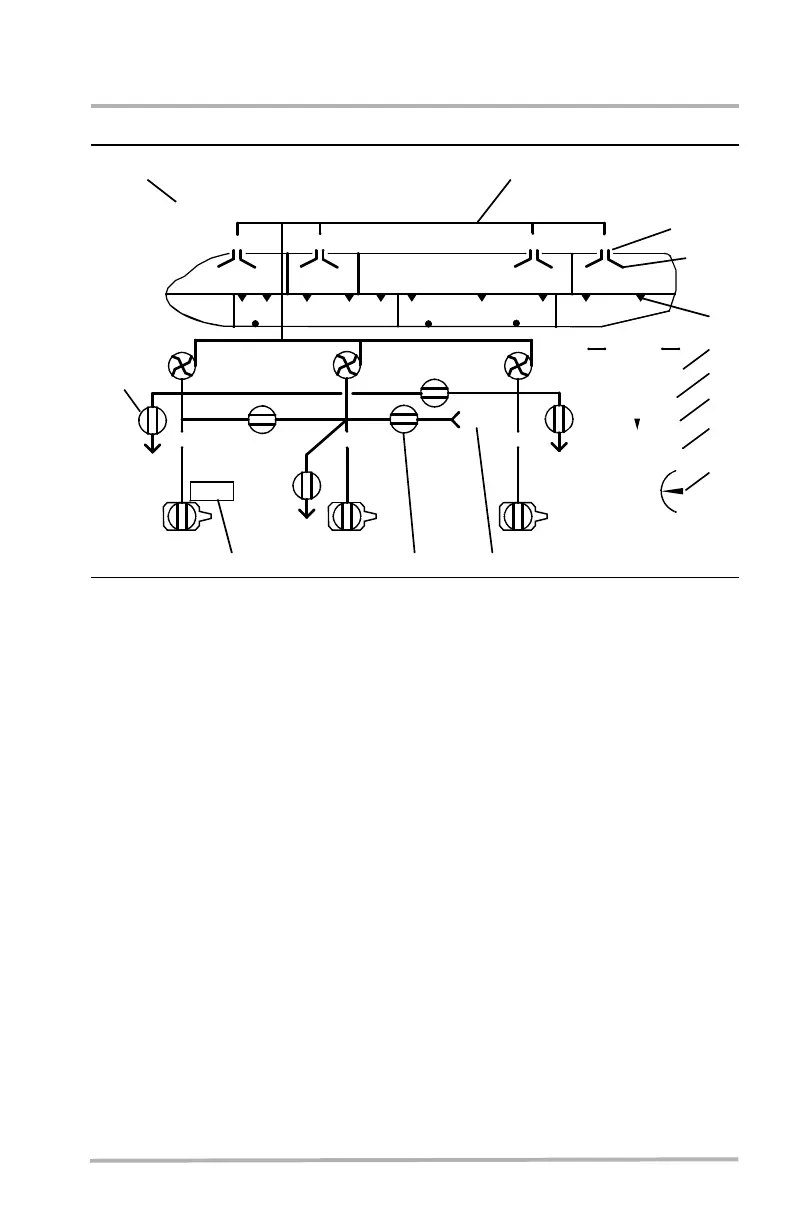

SD Synoptic - Air (Passenger Configuration)
1. Ducts and Flow Lines - white/green/red/amber
Ducts and flow lines are represented as a solid line. Ducts with no flow or
unpressurized flow lines are shown as white lines. Ducts and flow lines are
green when pressurized, red when there is a manifold failure, and amber if
turned off following a manifold failure.
2. Duct Temperatures - white/amber
Duct temperatures are in degrees C. Digits are normally white, and boxed
amber when there is a duct overheat. Unavailable data is replaced with an
amber X.
3. Zone Temperatures - white/cyan/amber
Zone temperatures are in degrees C. Actual temperatures are shown in large
white digits. Set temperature is shown in smaller cyan digits. If temperature
selector is off, OFF replaces small digits. Any unavailable temperature is
replaced with an amber X. All cargo zones are off with the CARGO TEMP
switch in OFF.
DB1-2-1958
CABIN
ALT
RATE
LAND
OUTFLO
710
APU
AIR
TEST
1
2
3
4
5
6
7
8
9
10 11 12
13
14
15º
26º 22º
24º
21º
20º
20º
22º
24º
22º
24º
22º
10º
5º 16º 15º
13º
15º
20º
19º
43
324º
43
207º
39
198º
CLSD
4200
5.4
110
DP
C
CC
CARGO SMOKE
WING
A/I
ZONE
TEMPS
ºC
WING
A/I
A/I
TAIL
C
C
C
240 PAX
