Fire Protection Chapter Fire
Components Section 20
Fire.20.1
Fire.20 Fire Protection-Components

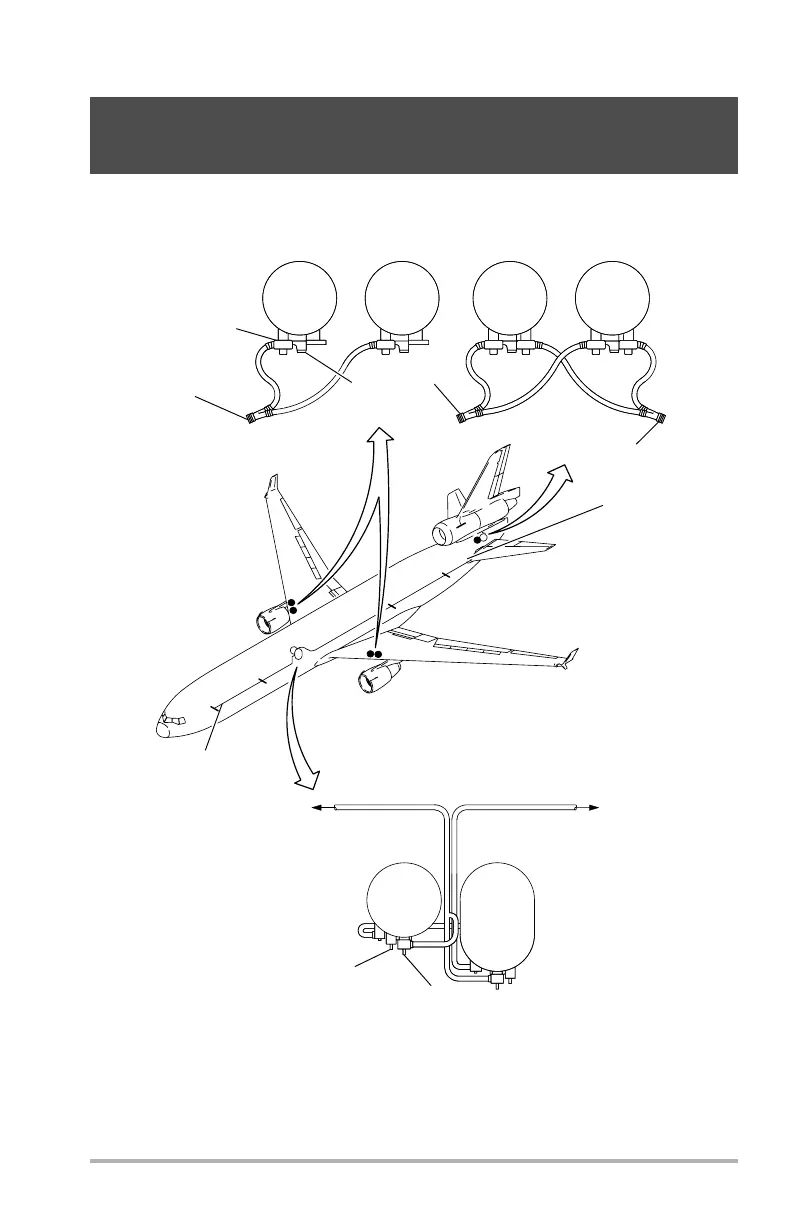

Fire Protection - Extinguisher Locations
APU
DISCHARGE
CONTAINER
LOW
PRESSURE
SWITCH
ENGINE 2
LOW
PRESSURE
SWITCH
DISCHARGE
CONTAINER
BOTTLE
1
BOTTLE
2
BOTTLE
1
BOTTLE
2
BOTTLE
1
BOTTLE
2
DISCHARGE
CHECK
VALVE
ENGINES
1 OR 3
TO: TO:
AND AFT
LOWER CARGO
CARGO
FWD LOWER CENTER,
DB1-2-1908
NOZZLES
