MD-11 Flight Crew Operations Manual
k
Engines -
Controls and Displays
Eng.30.7

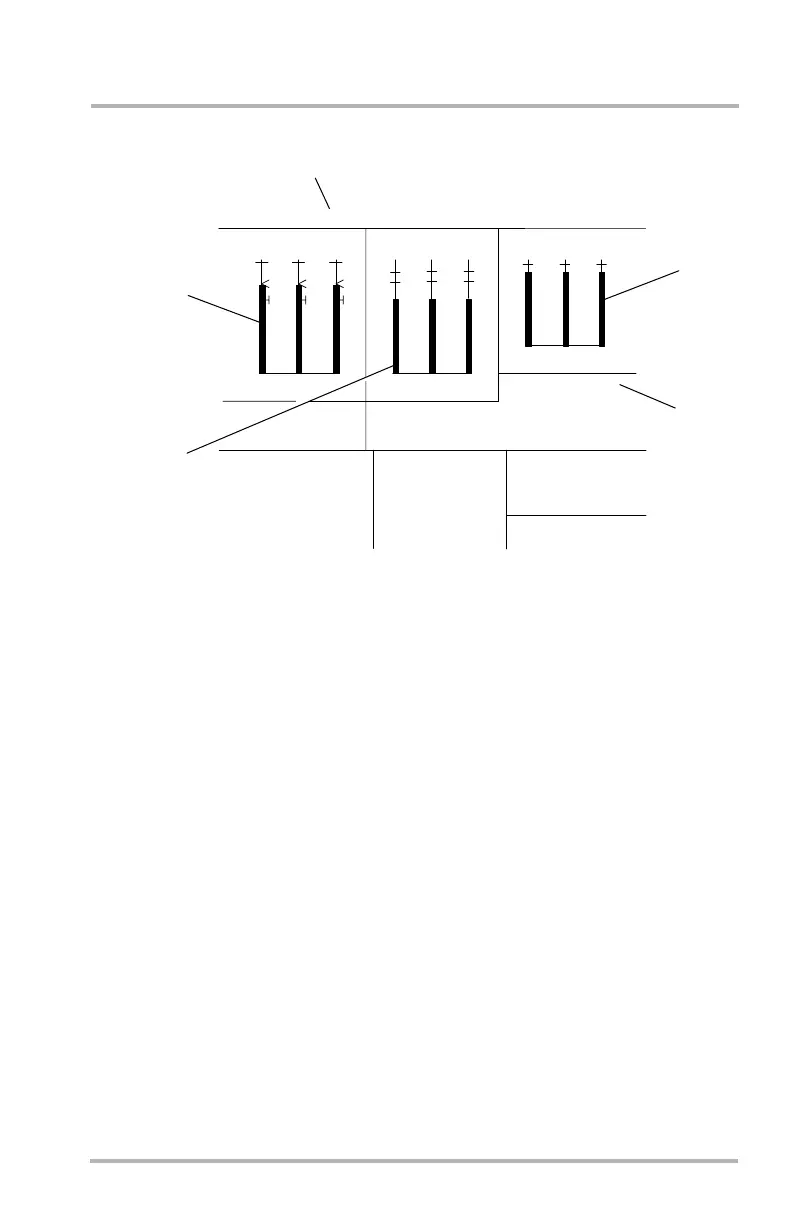

EAD Primary Engine Display (GE Tapes)
1. Thrust Rating and TAT
FMS N1 limit and modes are magenta. Manually set modes are white.
Available modes are: CLB (climb), CRZ (cruise), GA (go-around), MCT
(max contin thrust), TO (takeoff), and TO FLEX (takeoff flex). In TO FLEX,
the assumed temp is also shown. TO 1, TO 2 (10%, 20% derated takeoff
thrust) are displayed if selected. Total air temperature is in the upper right
corner in white.
2. N2
Columns are white, but turn red if N2 exceeds the redline limit. During start,
a cyan line appears to indicate the N2 at which fuel should be turned on.
Maximum redline exceedance, if any, is shown in amber at the top. This
exceedance can be reset with the ENG MAX POINTER RESET button on the
forward overhead panel.
3. Fuel Flow
Fuel flow is in white digits. Unit of measurement is kilograms per hour. When
the engine fuel valve is closed, a cyan FUEL OFF appears above the digits.
