MD-11 Flight Crew Operations Manual
k
Instrumentation and Navigation -
Controls and Displays
Inst.30.28

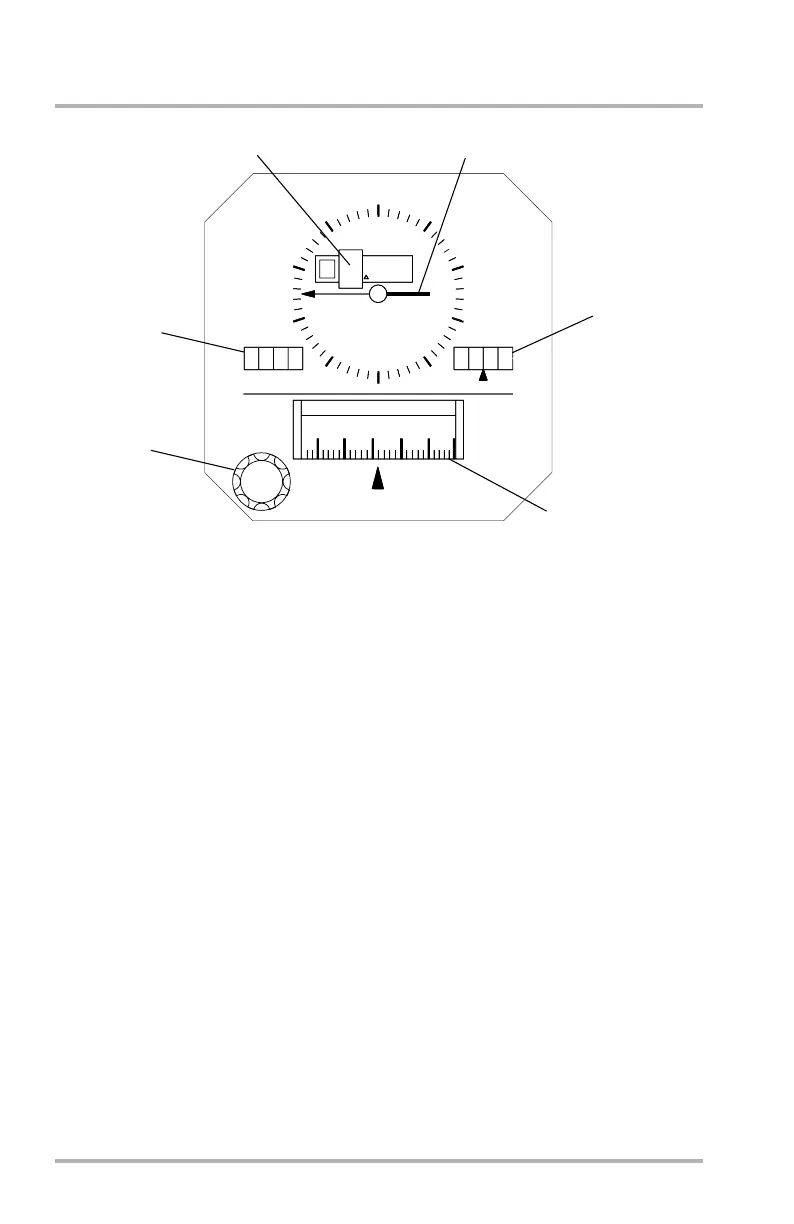

Standby Altimeter/Airspeed Indicator
1. ALT Readout
Displays altitude from -1,000 to 50,000 feet in 1,000 foot increments. The
zero position in the left hand ten-thousands is indicated by a green square
when below 10,000 feet and a red square when below sea level.
2. 100 Foot Pointer
Indicates altitude against a graduated circular dial, numbered every 100 feet.
Pointer makes one complete circle every 1,000 feet.
3. IN HG Barometric Pressure Display
Indicates pressure, set through the BARO set knob, in inches of mercury.
4. IAS Indicator
Triangular shaped lubber line indicates non-corrected indicated airspeed.
5. BARO Set Knob
Sets barometric pressure.
6. MB Barometric Pressure Display
Indicates pressure, set through the BARO set knob, in millibars.
LB1-3-0182
ALT
IAS
5
6
7
4
3
2
1
0
9
16
140120
2
9
9
2
3
1 0
1
000
0
BARO
KNOTS
MB IN HG
1
0
0
F
E
E
T
CENTER INSTRUMENT PANEL
3
4
5
6
2
1
October 02, 2006
