KLM MD-11 - Hydraulic Reservoir Components

MD-11 Flight Crew Operations Manual
k
Hydraulics -
Components
Hyd.20.3

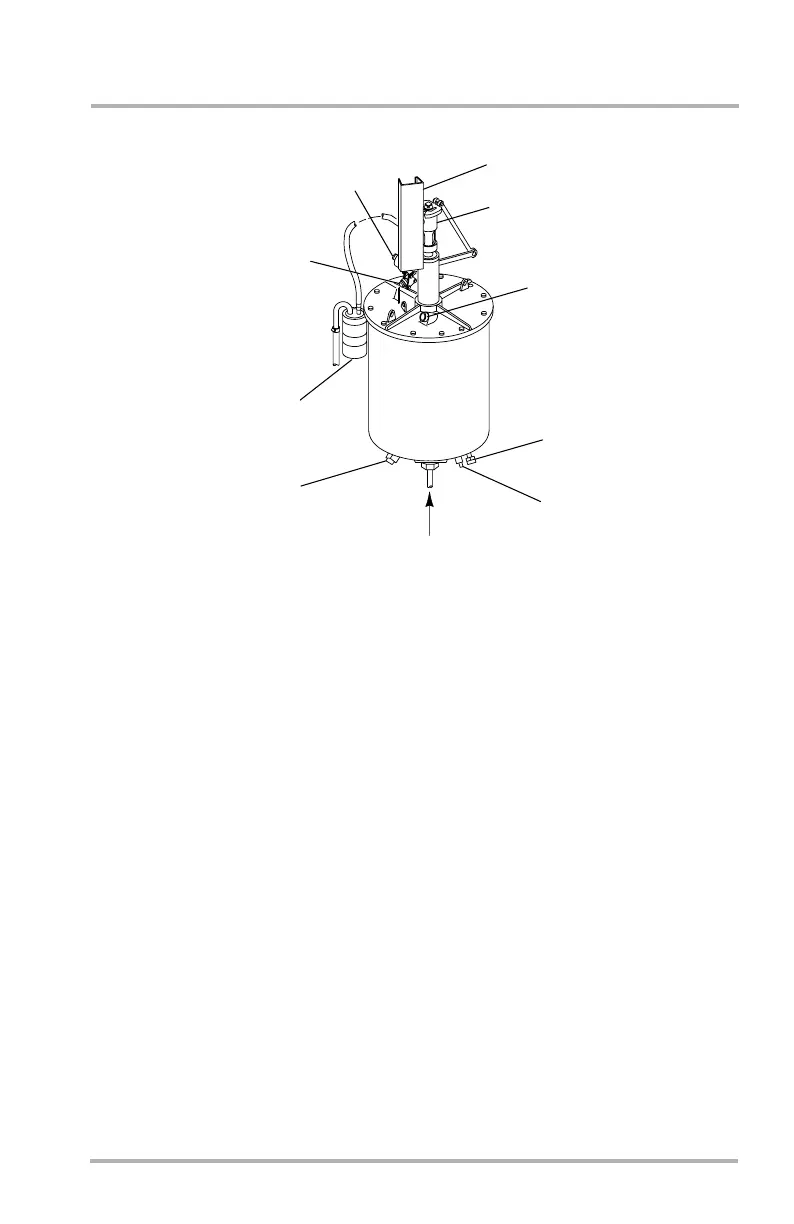

Hydraulic Reservoir Components
FILL LEVEL
INSTRUCTION PLATE
FLUID QUANTITY TRANSMITTER
LOW LEVEL
SWITCH
AIR BREATHER
DRAIN VALVE
SYSTEM PRESSURE
TEMPERATURE SENSOR
RELIEF AND SAMPLING
VALVE (BLEED)
DB1-2-1768
PRESSURE RELIEF VALVE
SYSTEM 1 AND 3
SUMP DRAIN
CONTAINER
October 02, 2006
