MD-11 Flight Crew Operations Manual
k
Emergency Equipment -
Controls and Displays
Emer.30.17
Inadvertent Cabin Door In-flight Pneumatic Discharge (Sheet 1)
LB1-3-0031
ROTATE
HANDLE
TO OPEN
SLIDE
DISARMED
SLIDE
ARMED
DOOR CONTROL
HANDLE
SLIDE
ARMING
LEVER
NEUTRAL
DETENT
EMERGENCY DOOR
OPEN POSITION
TO RESET DOOR CONTROL HANDLE

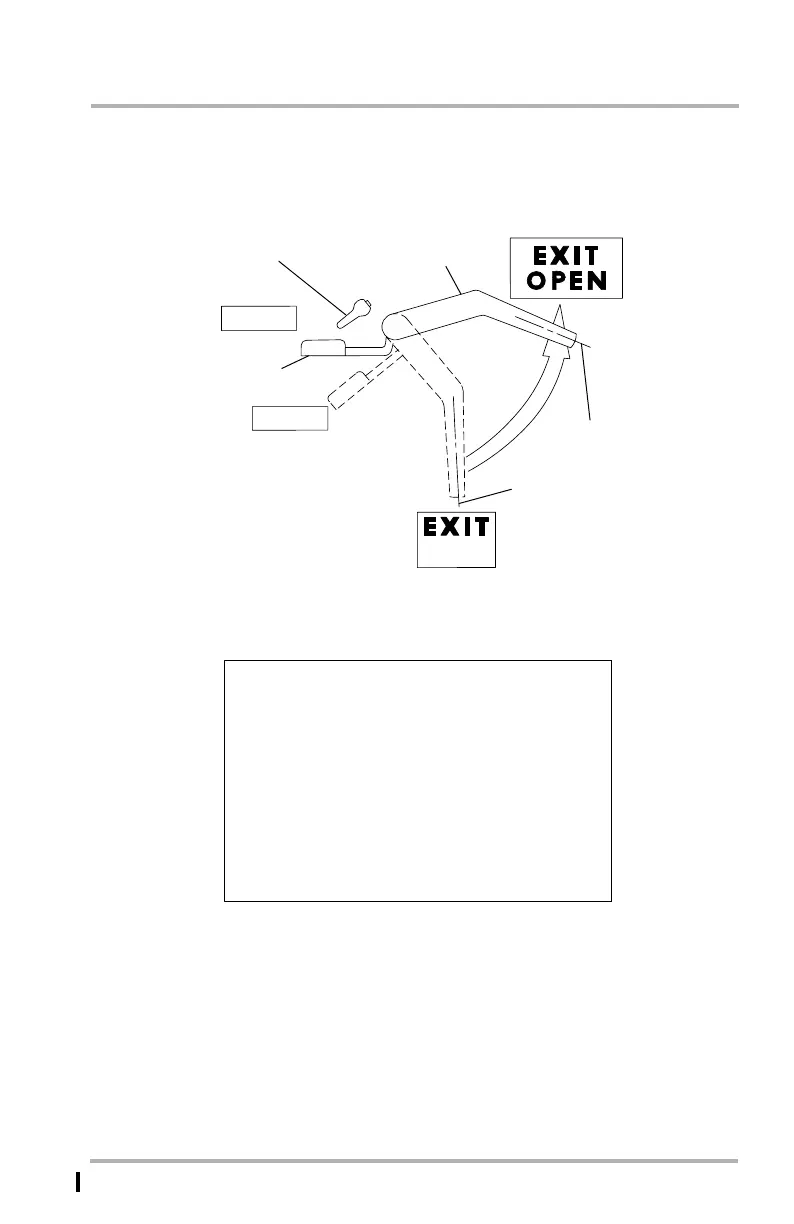

CABIN DOOR INTERIOR CONTROLS (FWD TWO)
(View Looking Forward)
TO RESET DOOR CONTROL HANDLE
1. Hold door control handle in Emergency EXIT OPEN
position and rotate reset lever upward.
2. While holding reset lever up, return handle to neutral
position.
3. Release reset lever.
4. Make certain slide arming lever is in SLIDE ARMED
position.
5. After landing use normal operating procedures to
open door.
RESET LEVER
(LOCKING PAWL)
November 16, 2009
