KLM MD-11 - ND Flight Plan Symbology (Sheet 2)

MD-11 Flight Crew Operations Manual
k
Instrumentation and Navigation -
Controls and Displays
Inst.30.12

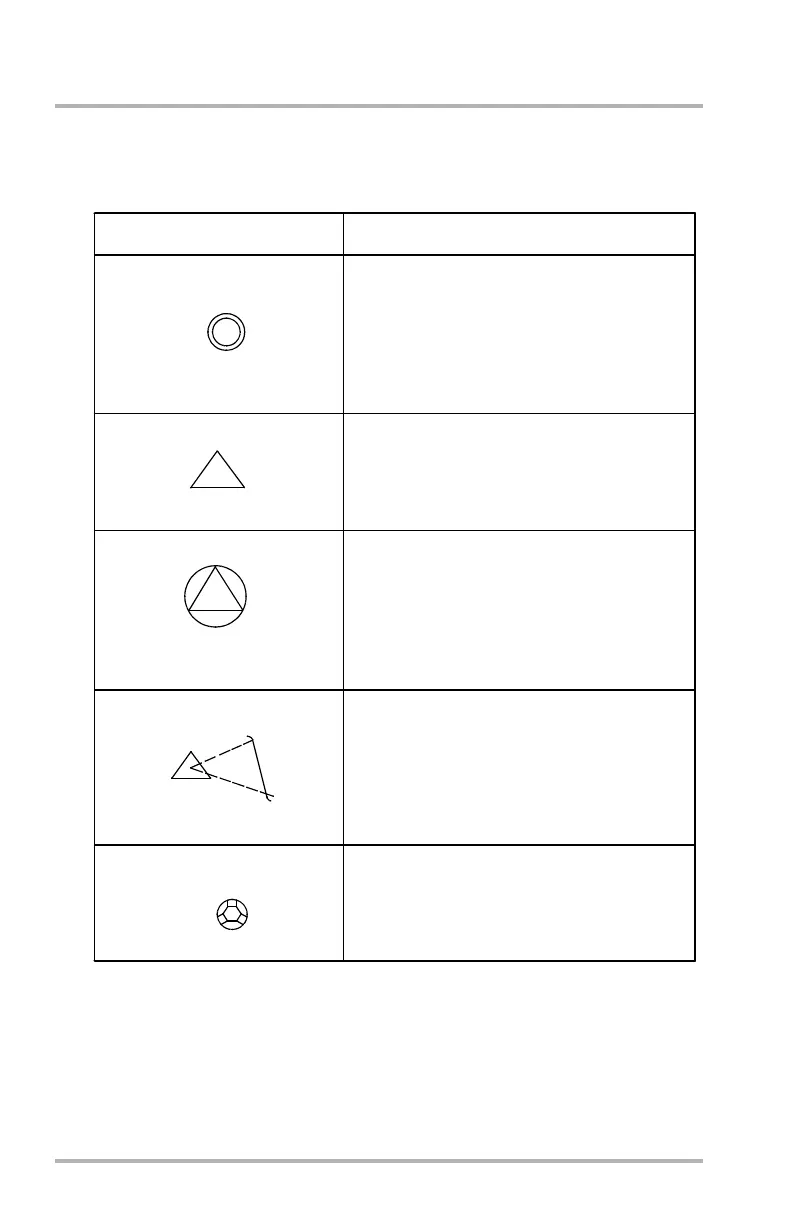

ND Flight Plan Symbology (Sheet 2)
LB1-3-0320
U.S.
SELECTED
EXPLANATION
NDB
Non-tuned or Non-Directional Beacons (NDB)
are displayed in cyan and are selected/de-
selected by pushing the NDB switch on the
ECP. Tuned stations are displayed in cyan
within a magenta circle and are not deselect-
able through the ECP.
Ground reference points (non-flight waypoints)
are displayed in cyan, and can be selected or
deselected by pushing the WPT switch on the
ECP.
Ground Reference Points
Selected Reference Points
Up to two ground reference points or navaids
may be selected through the MCDU. The
appropriate symbol will be displayed in white
circle. Points will be displayed even if sym-
bology of the same class has been deselected
through the ECP.
Selected Reference Points Radials
Up to four (three selectable plus a beam)
radials from selected reference points may be
displayed as a white dashed line labeled with
its bearing from the navaid. The display and
selection of these radials is through the FMS
MCDU.
Tuned Navaids
Tuned navaids are displayed in magenta within
a circle (indicating FMS selection).
LGB
LGB
LGB
245
270
250R
70
October 02, 2006
