MD-11 Flight Crew Operations Manual
k
FMS -
Controls and Displays
FMS.30.103

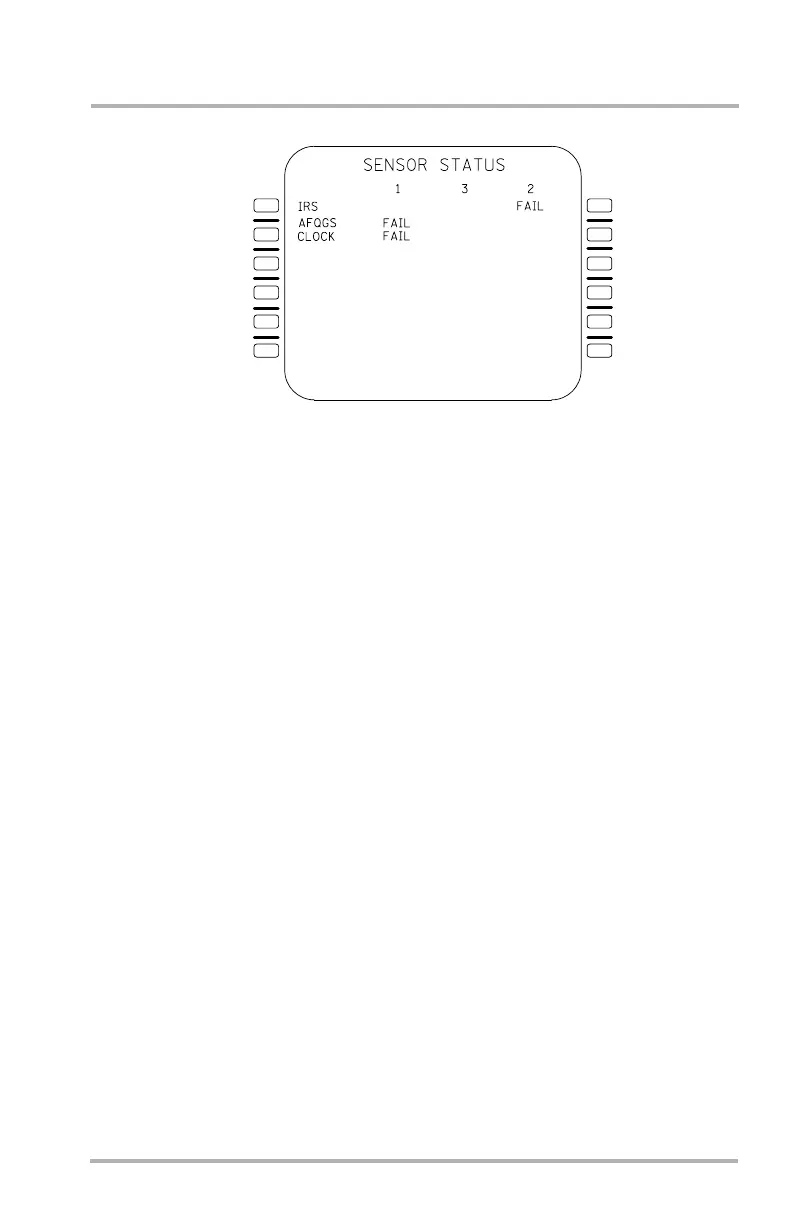

SENSOR STATUS Page
The SENSOR STATUS page displays information on the present status of the
sensors which provide data to the FMC. Only failed sensors are displayed on this
page. This page is accessed by pushing LSK 6L on the REF INDEX page.
Up to 11 lines may be used to display failed sensors. The failures are appropriately
displayed under these columns:
• 1 = left side of the aircraft.
• 2 = right side of the aircraft.
• 3 = center of the aircraft.
Where only one sensor is fitted to the aircraft, failures are indicated in column 1.
When operating mode is independent, the RESET FMC prompt is displayed in 6R.
Pushing LSK 6R initiates a resync operation.
NOTE: AFQGS FAIL will appear while the fuel quantity system is being
tested.
1L
2L
3L
4L
5L
6L
1R
2R
3R
4R
5R
6R
LB1-3-0126
October 02, 2006
