KLM MD-11 - Tail Anti-Ice

MD-11 Flight Crew Operations Manual
k
Ice and Rain Protection -
Components
Ice.20.3

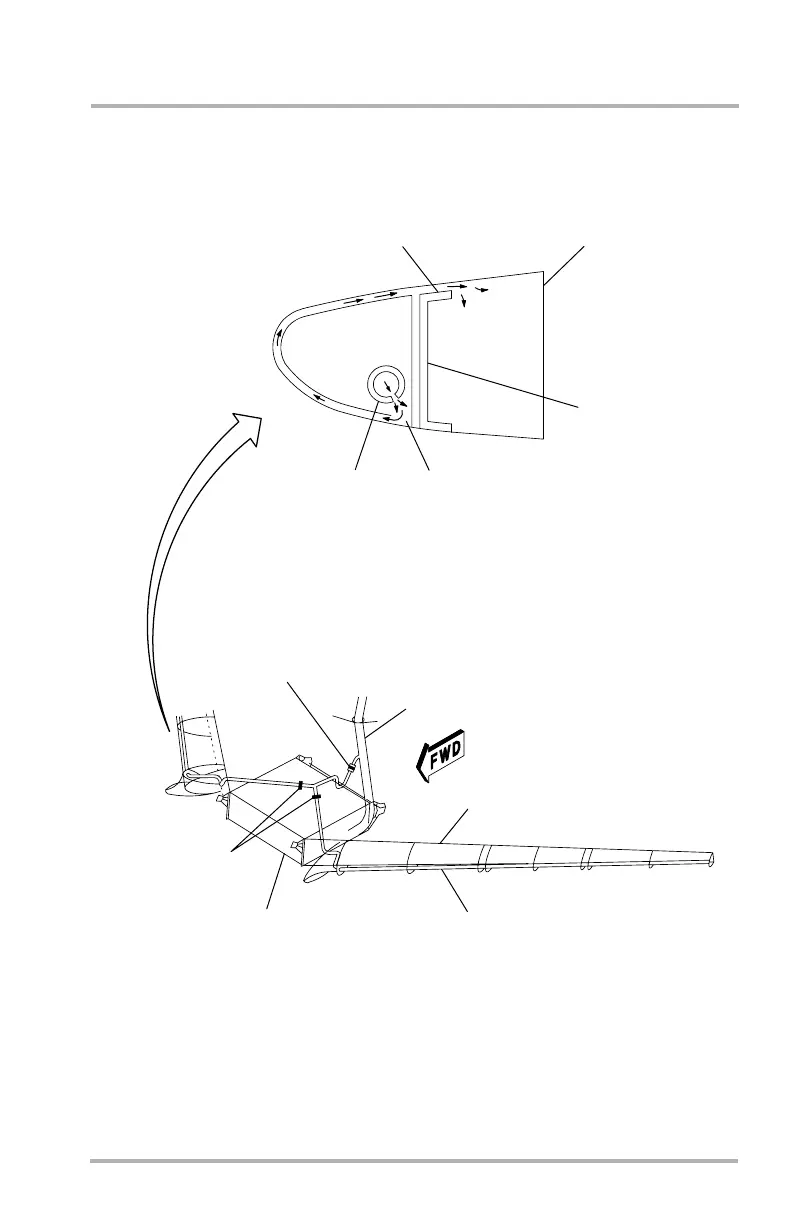

Tail Anti-Ice
NO. 2 PNEUMATIC DUCT
FRONT SPAR
ANTI-ICE VALVE
PICCOLO DUCT
PICCOLO DUCT
FRONT SPAR
NOTE: The heated air enters the aft side of the D-duct
bulkhead and flows outboard to the endcaps where it
exits.
HEAT PASSAGE
INLET
D - DUCT
BULKHEAD
HEAT PASSAGE
OUTLET
TAIL
TANK
DIFFERENTIAL
PRESSURE
SENSORS
DB1-2-1782
October 02, 2006
