KLM MD-11 - Reservoir Servicing

MD-11 Flight Crew Operations Manual
k
Hydraulics -
Components
Hyd.20.4
Reservoir Servicing

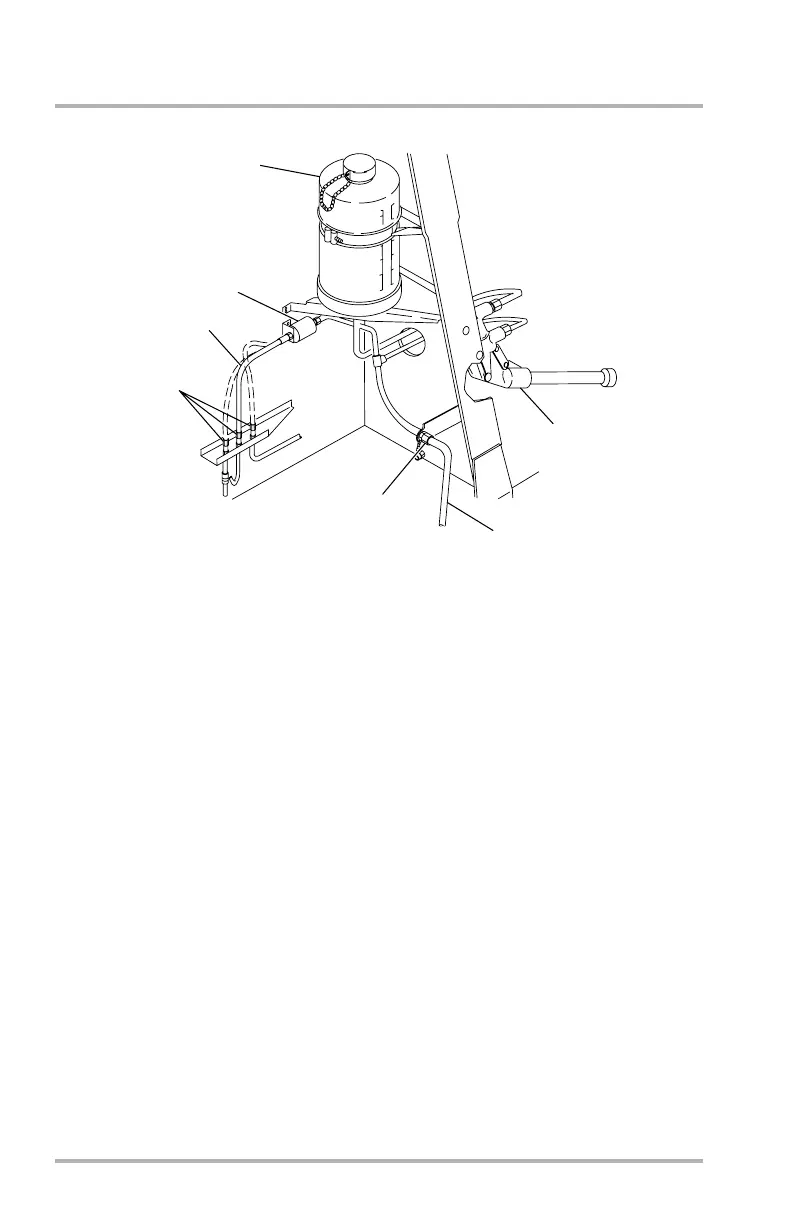

1. Fill Hose
This hose connects to the system requiring service.
2. System 1/System 2/System 3
All three hydraulic system reservoirs are serviced from the left main landing
gear wheel well by use of the fill hand pump or by the ground fill port.
DB1-2-1767
HAND PUMP
SUPPLY TANK
GROUND FILL PORT
FILL HAND PUMP
FILL FILTER
SERVICE
PRESSURE
FILL HOSE
1
2
