MD-11 Flight Crew Operations Manual
k
Emergency Equipment -
Controls and Displays
Emer.30.11

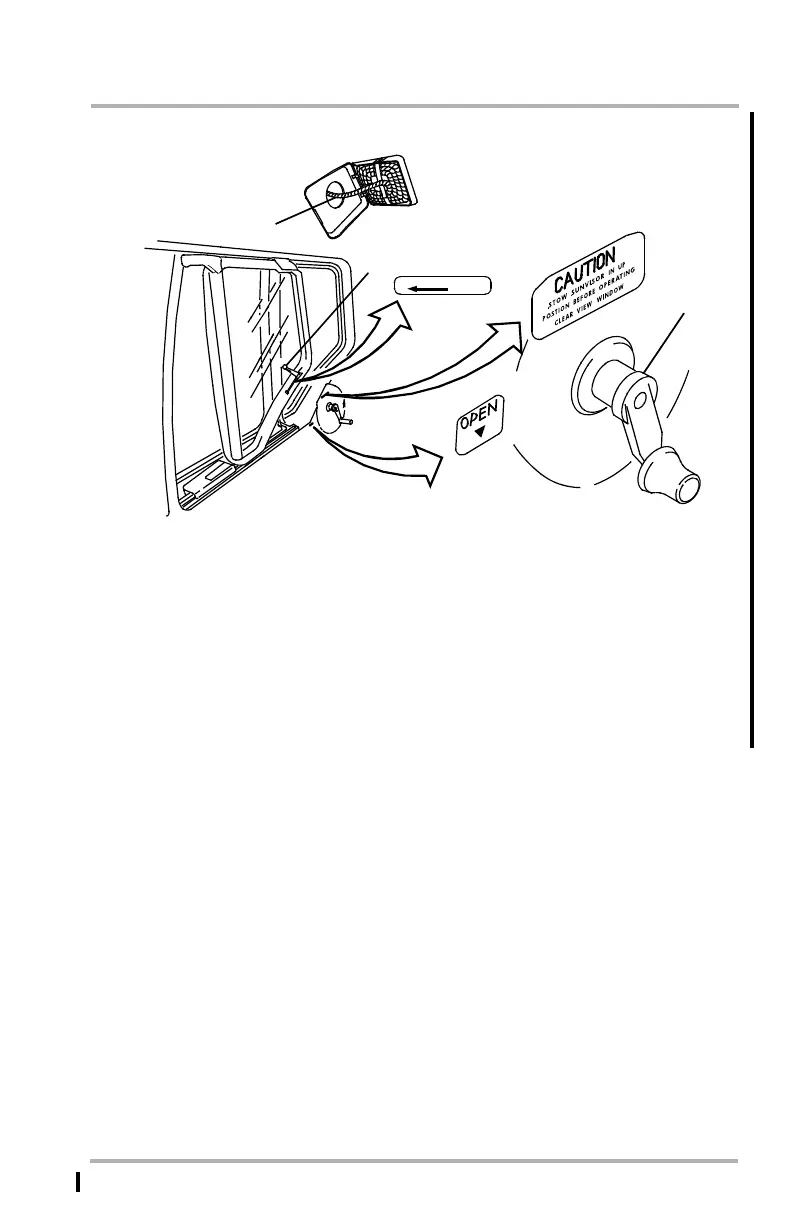

Emergency Exits - Clearview Windows
1. Clearview Window Locklatch Handle
Depress handle in direction indicated and rotate aft to unlock window.
2. Clearview Window Crank
Push in to engage, then rotate handle counterclockwise to open clearview
window.
(VIEW LOOKING FWD)
(TYPICAL BOTH SIDES)
SLIDING CLEARVIEW WINDOW
LB1-3-0034A(m)
ESCAPE ROPE
OR STRAP
2
1
OPERATE
DEPRESS HANDLE TO
November 16, 2009
