KLM MD-11 - Nose Gear Visual Uplock and Downlock Indicator

To Next Page

To Previous Page

MD-11 Flight Crew Operations Manual

Landing Gear and Brakes -

Controls and Displays

Land.30.11

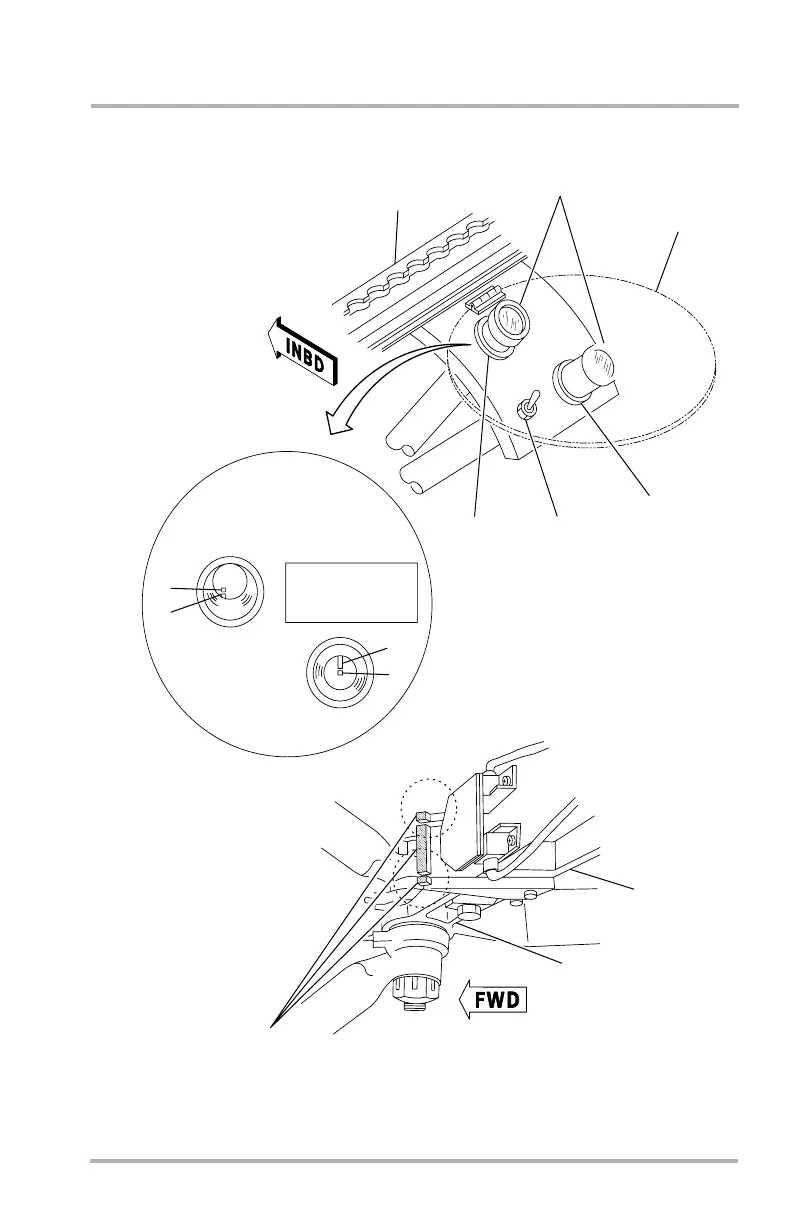

Nose Gear Visual Uplock and Downlock Indicator

LB1-3-0167

SEAT TRACK

DOWNLOCK

GEAR WELL

LIGHT SWITCH

UPLOCK

NOSE GEAR LOCK

VIEWING INSTRUCTIONS

REMOVE COVER PLATE

2. EYE POSITION SHOULD BE

APPROX 15 INCHES ABOVE FLOOR

GEAR DOWN

GEAR UP



INDICATOR A" MUST

BE IN LINE WITH



INDICATOR B" AS SHOWN

FOR LOCKED GEAR

LOWER

OVERCENTER

LINK

OVERCENTER

LINK

UPPER
