KLM MD-11 - Captains and First Officers Seats

MD-11 Flight Crew Operations Manual
k
Aircraft General -
Controls and Displays
Agen.30.7

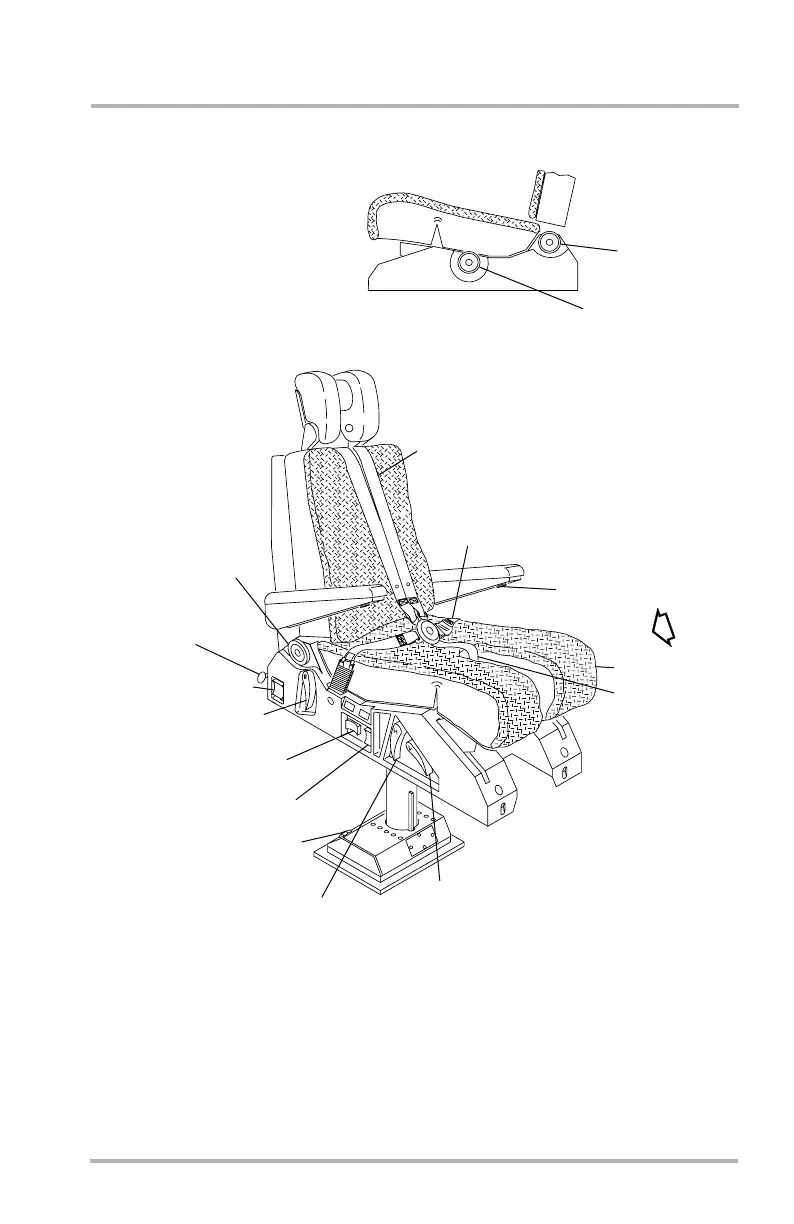

Captain’s and First Officer’s Seats
LUMBAR
UP-DOWN
KNOB
CIRCUIT BREAKER
THIGH SUPPORT
CROTCH STRAP
LAP BELT
SHOULDER HARNESS
A
THIGH
SUPPORT
KNOB
A
NOTE: Captain seat is shown. First Officer
seat controls are on the opposite side.
BUTTON
VIEW
DB1-2-1647
ARMREST ADJUST
RESTRAINT LOCK
HANDLE
MASTER POWER
SWITCH
VERTICAL CONTROL
LEVER
HORIZONTAL CONTROL
LEVER
VERTICAL CONTROL
SWITCH
HORIZONTAL CONTROL
SWITCH
RECLINE CONTROL
LEVER
LUMBAR
IN-OUT KNOB
October 02, 2006
