KLM MD-11 - Pneumatic Manifold Isolation Control

MD-11 Flight Crew Operations Manual
k
Air -

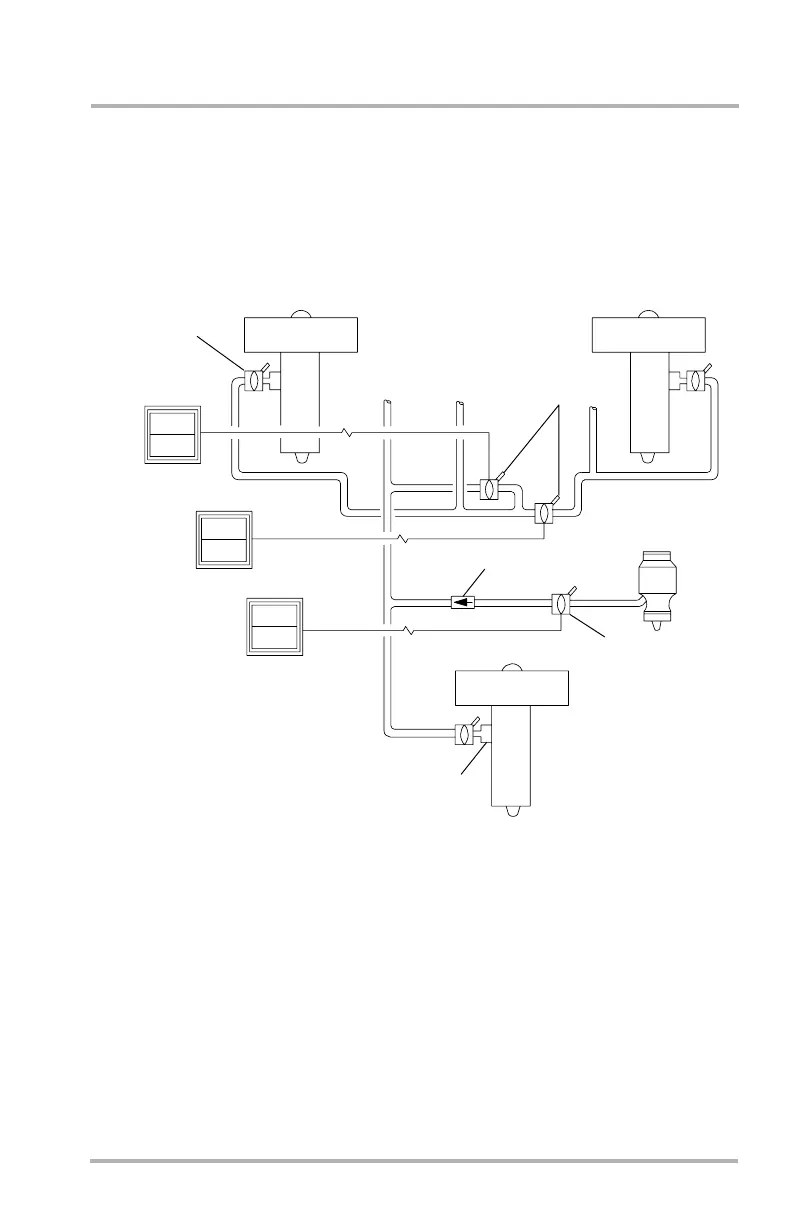

Functional Schematic
Air.50.3
Pneumatic Manifold Isolation Control
ENGINE 1 ENGINE 3
ENGINE 2
DISAG
DISAG
ON
ON
APU
STARTER
CHECK VALVE
ISOLATION
VALVES
APU
LOAD
CONTROL
VALVE
STARTER
CONTROL
VALVE
USE ENG
AIR
1-3 ISOL
1-2 ISOL
LB1-3-0212A
APU
ON
October 02, 2006
