MD-11 Flight Crew Operations Manual
k
Engines -
Controls and Displays
Eng.30.10

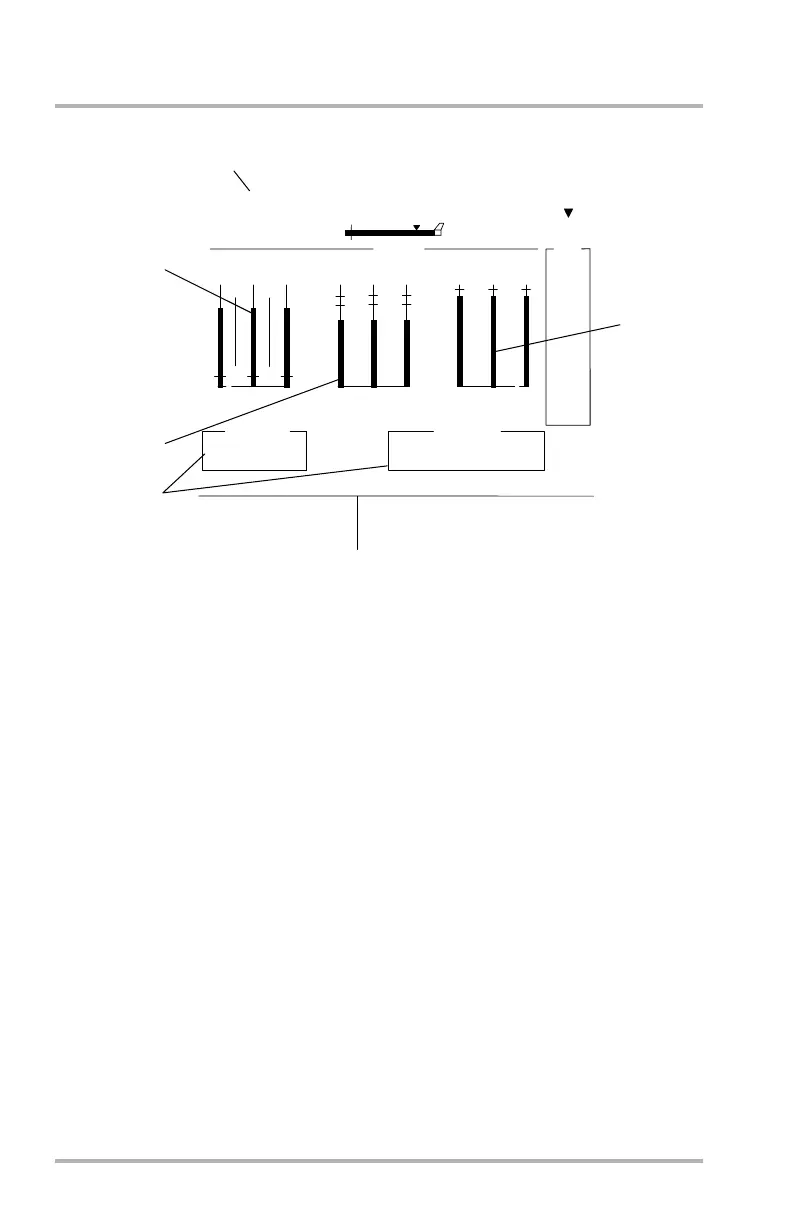

SD Secondary Engine Display (Tapes)
1. Gross Weight and Fuel
Gross weight and fuel are in white. Invalid data is marked with an amber X.
Unit of measurement is metric tons and kilograms.
2. OIL QTY Display
When the engine reaches minimum idle (on ground), a cyan line appears
showing initial oil quantity for oil consumption reference. The display turns
amber and digits are boxed in amber when oil quantity is below 4 quarts. If
associated DEU power supply fails, an amber X appears.
3. NAC TEMP and VIBRATION Readouts
Nacelle temperature is shown with white digits. Compressor and turbine
vibration levels are white but turn amber and boxed in amber if they exceed
limits. If data is not available, an amber X will appear.
4. OIL TEMP Display
The display will turn amber and digits will be boxed in amber if oil
temperature exceeds the high amber line or below the low amber line.
DB1-2-1730
5
4
3
2
1
ENG OIL
NAC TEMP
VIBRATION
COMP
TURB
2.4
3.2
0.4
4.2
2.4
3.2
ALERTS
CONSEQUENCES
CG 31.8
CABIN ALT
CABIN RATE
5450
850
APU
N1
107
EGT
485
OIL
8.4
N2
101
STAB
ANU
PRESS
TEMP
QTY
106
98
127
85 78
82
22
21
22
165
10.1
160 170
.80
GW 269
FUEL 105
300
MT
KG
October 02, 2006
