KLM MD-11 - Passenger Oxygen Masks

MD-11 Flight Crew Operations Manual
k
Emergency Equipment -
Controls and Displays
Emer.30.6
Passenger Oxygen Masks

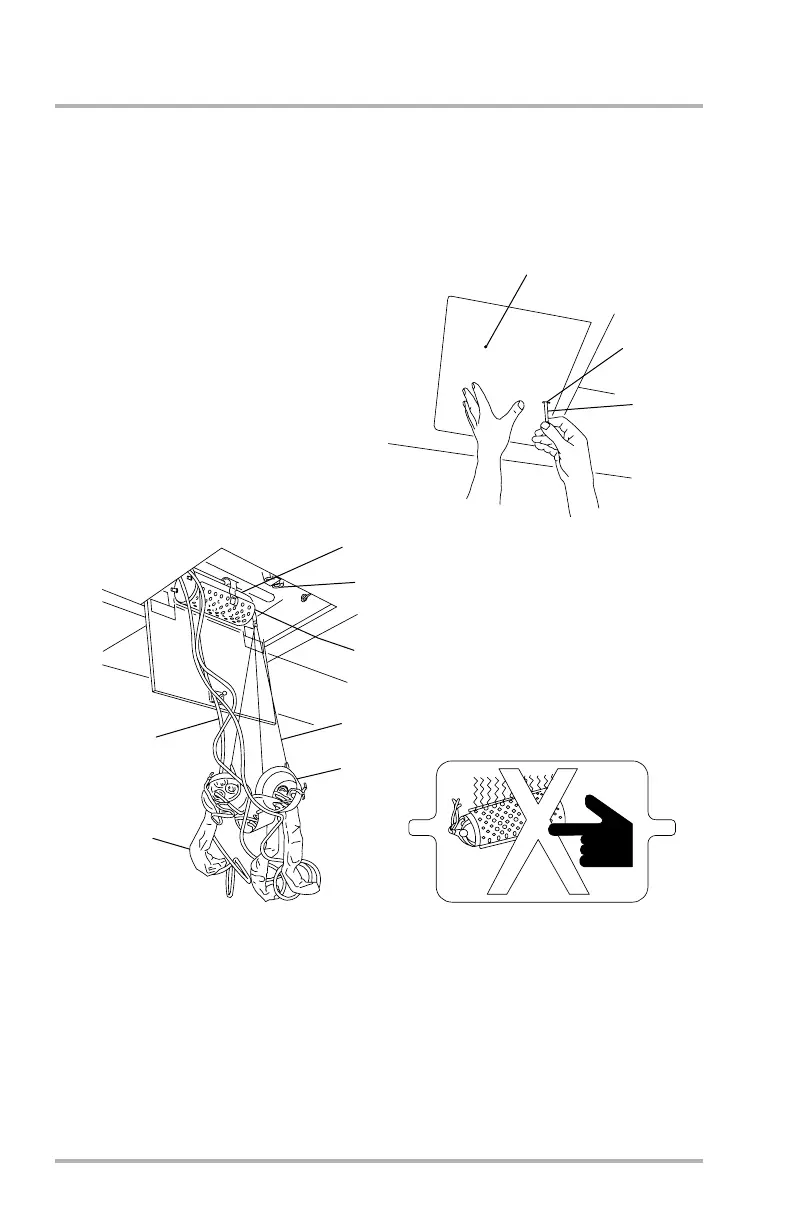

GENERATOR
LATCH
HEAT SHIELD
LANYARDS
MASKS
HOSES
RESERVOIR
BAGS
MASKS AVAILABLE
(3-MASK UNIT SHOWN, 1
2, AND 4 UNITS TYPICAL)
DOOR
DB1-2-1692
TYPICAL ALL
COMPARTMENTS
INSERT SMALL ROUND ROD IN LATCH
RELEASE SLOT TO RELEASE LATCH.
LATCH
RELEASE
SLOT
SMALL
ROUND
ROD
NOTE:
Latch installations will vary with different
oxygen compartment installations.
October 02, 2006
