KLM MD-11 - GPWS;EGPWS Envelope (Sheet 3)

MD-11 Flight Crew Operations Manual
k
Warning and Alerting -
Controls and Displays
Warn.30.9

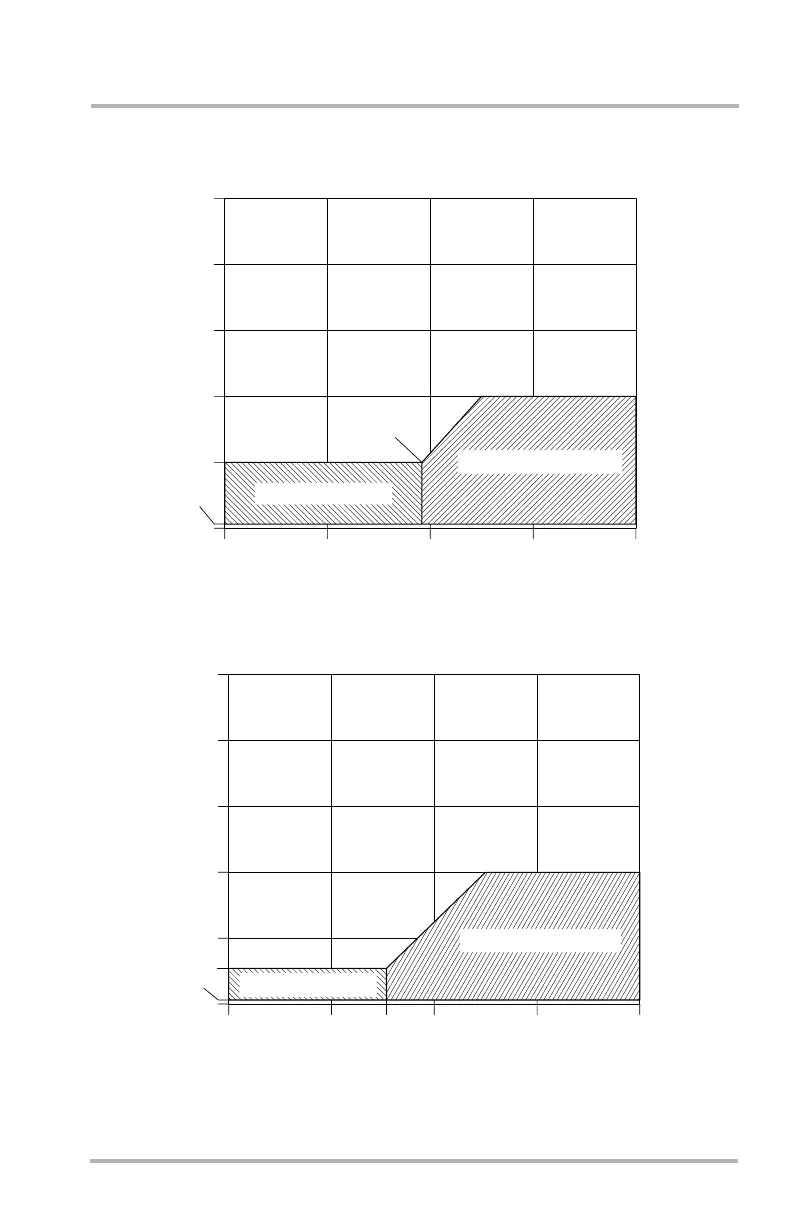

GPWS/EGPWS Envelope (Sheet 3)
CAG(IGDS)
190 Kts
"TOO LOW TERRAIN"
"TOO LOW GEAR"
0
200 300 400
30
500
1000
1500
2000
2500
AIRSPEED - KNOTS
0100
MINIMUM TERRAIN CLEAR
MODE 4A - UNSAFE TERRAIN CLEARANCE -
GEAR UP, FLAPS UP
"TOO LOW TERRAIN"
"TOO LOW FLAP"
0
200 300 400
30
500
1000
1500
2000
2500
AIRSPEED - KNOTS
0100
245
159
MODE 4B - UNSAFE TERRAIN CLEARANCE -
GEAR DOWN, FLAPS UP
MINIMUM TERRAIN CLEARANCE - FEET
